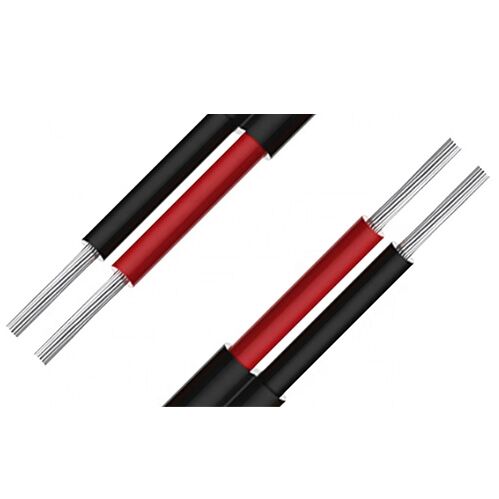

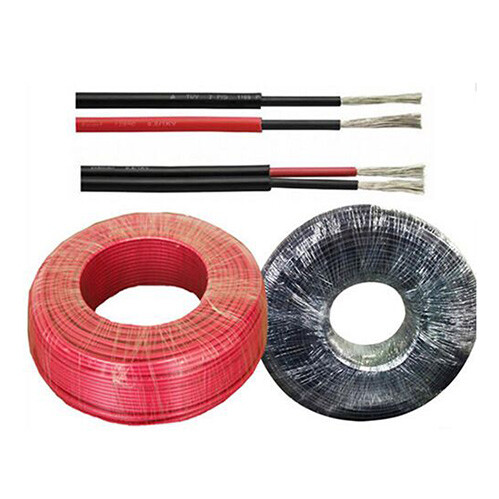

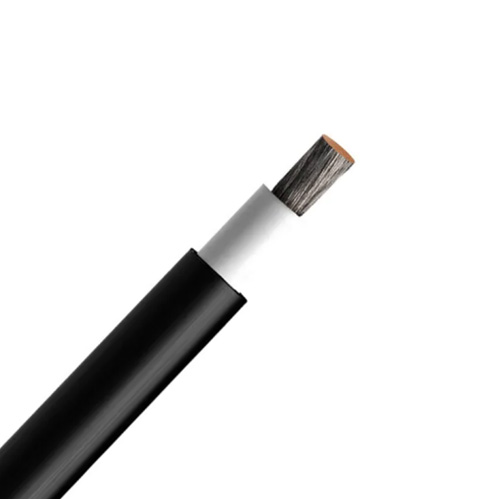

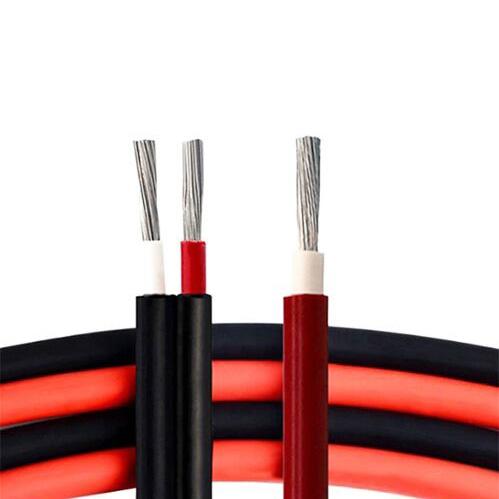

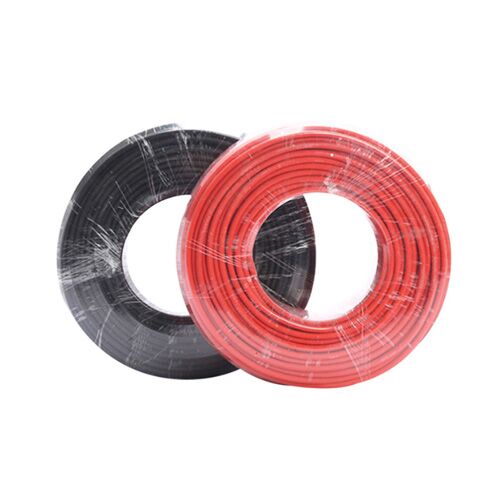

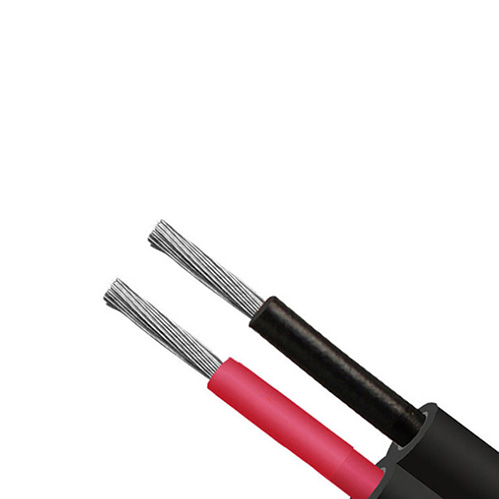

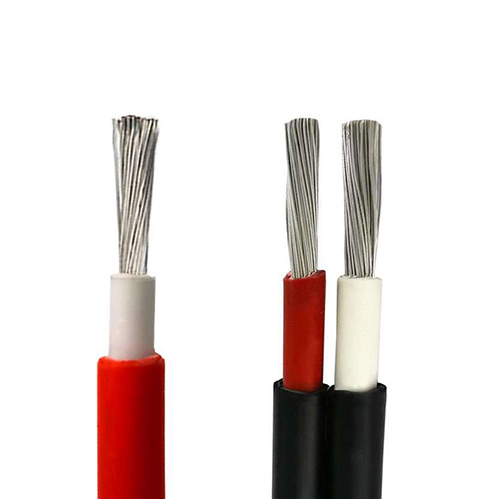

PV1-F / H1Z2Z2-K Solar Cable

Product Overview

PV1-F / H1Z2Z2-K solar cables are designed for reliable power transmission in photovoltaic (PV) systems. These cables are suitable for interconnection between solar panels, inverters, and other components in solar power installations.

Manufactured with high-quality tinned copper conductors and cross-linked insulation materials, they ensure excellent resistance to UV, ozone, and harsh environmental conditions, guaranteeing long service life in outdoor applications.

Standards

• PV1-F: TÜV 2Pfg 1169
• H1Z2Z2-K: EN 50618 / IEC 62930

Key Features

• Rated voltage: up to 1.5kV DC
• Excellent UV and weather resistance
• Halogen-free, low smoke (H1Z2Z2-K)
• مقاistant to ozone and hydrolysis
• Flame retardant
• High flexibility (Class 5 conductor)
• Long service life (25+ years)
• Suitable for harsh outdoor environments

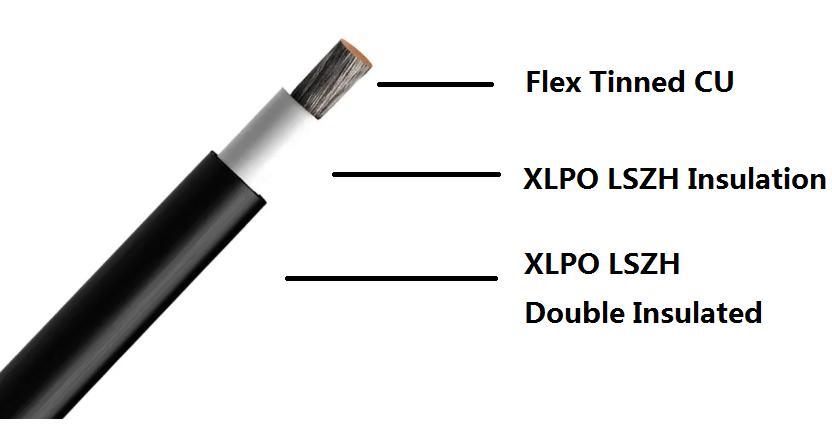

Construction

Conductor:
Tinned copper, Class 5 flexible

Insulation:
Cross-linked compound (LSZH for H1Z2Z2-K)

Sheath:
Cross-linked halogen-free compound

Technical Data

• Temperature range:
  • Fixed installation: -40°C to +90°C
• Max conductor temperature: 120°C (short circuit)
• Voltage rating: 1.0/1.0 kV AC, 1.5 kV DC
• Bending radius: 4× cable diameter

Applications

• Solar power plants
• Rooftop photovoltaic systems
• Solar farms
• Connection between PV modules and inverter
• Outdoor and indoor installations

Advantages

Compared with traditional PV1-F cables, H1Z2Z2-K cables provide:

• Higher safety performance (LSZH material)
• Better environmental protection
• Compliance with latest European standards
• Enhanced durability for long-term projects

Available Sizes

1.5mm² – 240mm² (customizable）
