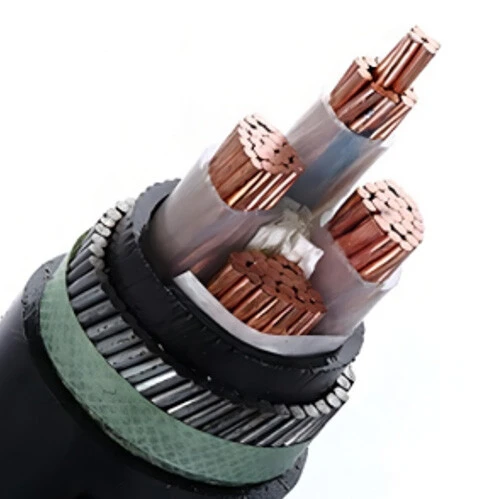

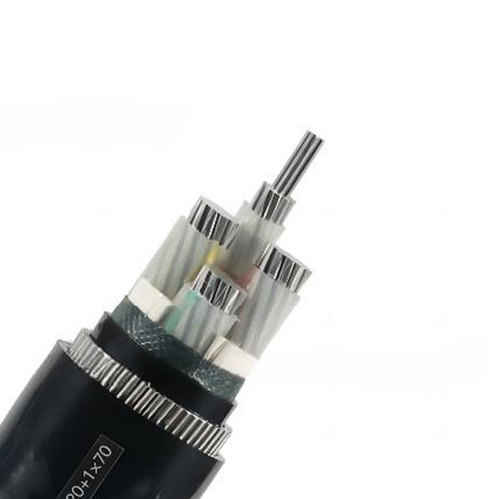

NA2XRY/N2XRY SWA XLPE Underground Cable
Voltage:0.6-35KV
Conductor: CU or AL
Insulation: XLPE; PVC
Inner sheath: PVC or PE
Armour layer: Steel wire;
Sheath: PVC or PE or LSZH
Standards:CCC/UL/CE/CNAS/IEC Certificate
Optional Characteristics: *FR,FRLS,LSZH,LSOH,LSHF,anti-termite,water-proof cables and so on are available.
*Customized products are supported
STRUCTURE
MODEL
CHARACTERISTICS

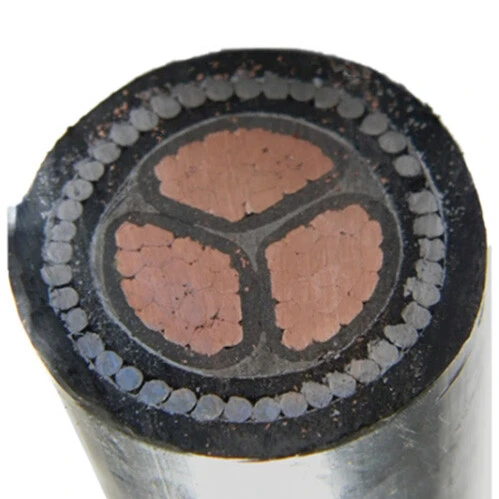

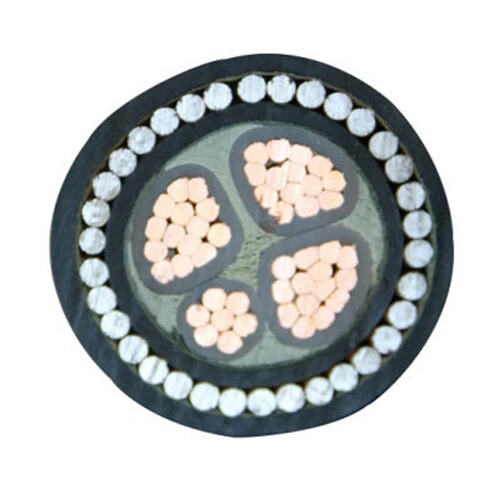

LV SWA CABLE STRUCTURE


Voltage: 0.6/1KV; 1.8/3.3KV;

Conductor:

Copper or Aluminum or Tinned Copper

(Solid class1; stranded class2;Flexible class5 IEC 60228 )

Insulation:

Crosslinked Polyethylene (XLPE)

PVC (optional)

Shield Layer (optional):

Copper tape(CTS);

Copper Wire Braided (CWB);

Armour Type :

Steel Wire armoured (sta)

Aluminum wire armoured(ata)

Outer Sheath:

Polyvinyl chloride (PVC)

PE (Polyethylene)  (optional)

LSZH Compound(optional)

Standards: CCC/UL/CE/CNAS/IEC Certificate

Additional:

*FR,FRLS,LSZH,LSOH,LSHF,anti-termite,water-proof cables and so on are available..

*Customized products are supported.

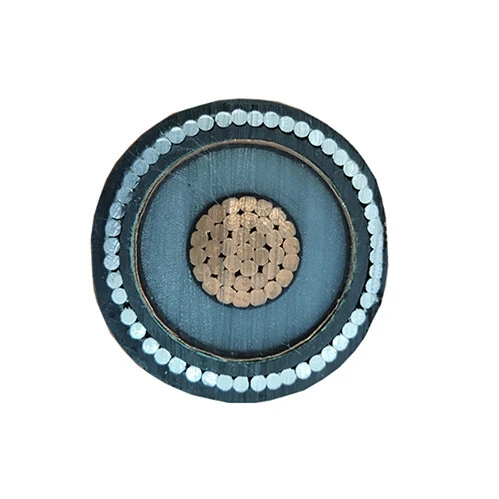

MV SWA CABLE

Voltage: 3.6/6KV; 6/10KV;8.7/15KV;12/20KV; 26/35kV;

Conductor: Copper or Aluminum

Insulation:

Crosslinked Polyethylene (XLPE)

PVC (optional)

Shield Layer:

Copper tape Shield(CTS)

Copper Wire + Copper Tape helically shield(optional)

Armour Type :

steel tape armoured (sta)

Aluminum wire armoured (awa)

Outer Sheath:

Polyvinyl chloride (PVC)

PE (Polyethylene)  (optional)

Standards: CCC/UL/CE/CNAS/IEC Certificate

*FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.

*Customized products are supported.




LV ARMOURED ELECTRIC CABLE
Normal Models HUANGHE TYPE Description Cores Cross Section Area
Cu/xlpe/pvc/swa/pvc YJV32 copper core, xlpe insulated, steel wire armoured,
pvc sheathed cable
Al/xlpe/pvc/swa/pvc YJLV32 aluminum core, xlpe insulated, steel wire armoured,
pvc sheathed cable
Note: Flame retardant cable , fire resistant, Low Smoke halogen free cable are also available.



Model Code(Based on DIN VDE) Conductor Armour Type Standard Description
BS 5467 Cu or Al Steel wire British British standard XLPE insulated, SWA, PVC sheathed low-voltage power cable
BS 6622 Cu or Al Steel wire British British standard for medium-voltage cables with XLPE insulation and SWA
N2XRY Copper Steel wire DIN VDE Copper conductor, XLPE insulation, PVC sheath, steel wire armoured
NA2XRY Aluminum Steel wire DIN VDE Aluminium conductor version of N2XRY
NYRY Copper Steel wire DIN VDE PVC insulated and sheathed, steel wire armoured cable


MV ARMOURED ELECTRIC CABLE

Medium Voltage

Normal Models

HUANGHE TYPE

Description

Cores

Cross Section Area

Cu/xlpe/(CTS)/pvc/swa/pvc

YJV32

copper core, xlpe insulated, pvc inner sheath,steel wire armoured,

pvc sheathed cable

Al/xlpe/(CTS)/pvc/swa/pvc

YJLV32

aluminum core, xlpe insulated, pvc inner sheath,steel wire armoured,

pvc sheathed cable

Cu/xlpe/(CTS)/pvc/awa/pvc

YJV72

copper core, xlpe insulated, pvc inner sheath,aluminum wire armoured,

pvc sheathed cable

Al/xlpe/(CTS)/pvc/awa/pvc

YJLV72

aluminum core, xlpe insulated, pvc inner sheath,aluminum wire armoured,

pvc sheathed cable

Note: Flame retardant cable , fire resistant, Low Smoke halogen free cable are also available.

XLPE Material

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

Min.Bending Radius:

Item

Single Core

Multi core


Unarmored

Armored

Unarmored

Armored

Min.Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D

* D means Overall diameter of cables
