Conductor: CU/AL;
Insulation: PVC;
Sheath: PVC or PE or LSZH
Standards:CCC/UL/CE/CNAS/IEC Certificate
Optional Characteristics: *FR,FRLS,LSZH,LSOH,LSHF,anti-termite，water-proof cables and so on are available.
*Customized products are supported

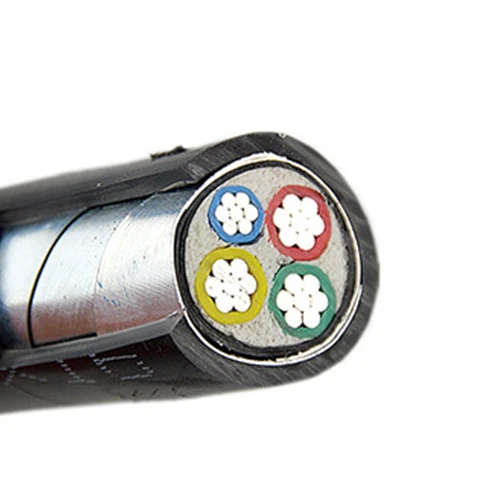

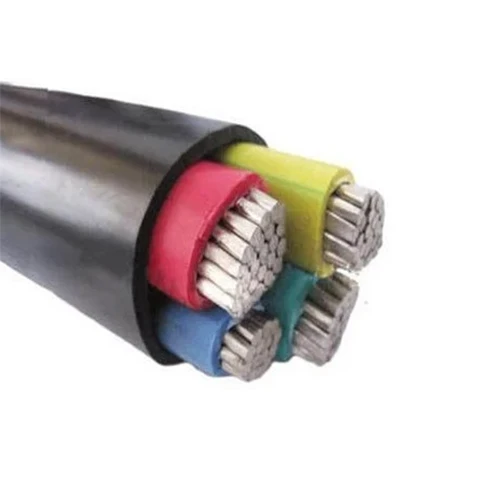

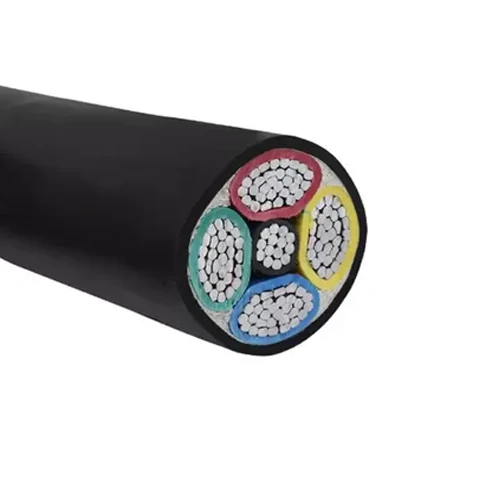

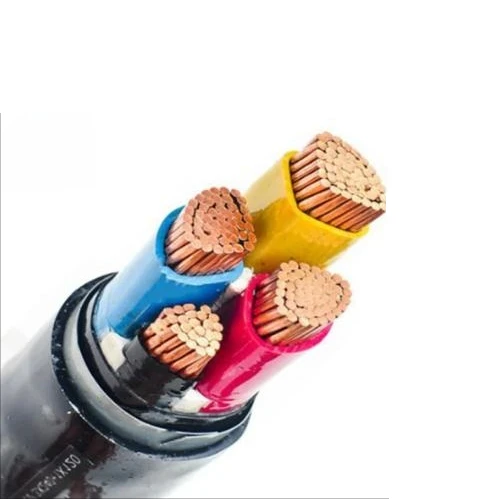

LV COPPER/ALUMINUM PVC CABLE STRUCTURE
Voltage: 0.6/1KV; 1.8/3.3KV;
Conductor:
Copper , Aluminum or Tinned Copper
(Solid class1; stranded class2;Flexible class5 IEC 60228 )
Insulation:
PVC
Crosslinked Polyethylene (optional)
Shield Layer (optional):
Copper tape(CTS);
Copper Wire Braided (CWB);
Armour Type (optional):
Steel tape armoured (sta)

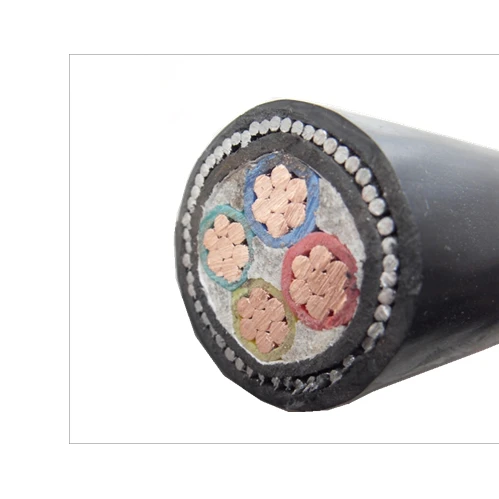

steel wire armoured (swa)
Aluminum wire armoured (awa)
Aluminum tape armoured(ata)
Outer Sheath:
Polyvinyl chloride (PVC)
PE (Polyethylene) (optional)
LSZH Compound(optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional:
*FR,FRLS,LSZH,LSOH,LSHF,anti-termite，water-proof cables and so on are available..
*Customized products are supported.
XLPE Material
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
PVC Material
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
Min.Bending Radius:
