Conductor: AL
Conductor shield: Semi-conductive shield
Insulation: XLPE；PVC
Insulation shield: Semi-conductive shield
Metallic shield: Copper tape shield(CTS) or Copper wire +Copper Tape(CWS+CTS)
Armored layer(Optional): AWA/ATA/SWA/STA as options;
Sheath: PVC or PE or LSZH
Standards:CCC/UL/CE/CNAS/IEC Certificate
Optional Characteristics: *FR,FRLS,LSZH,LSOH,LSHF,anti-termite，water-proof cables and so on are available.
*Customized products are supported

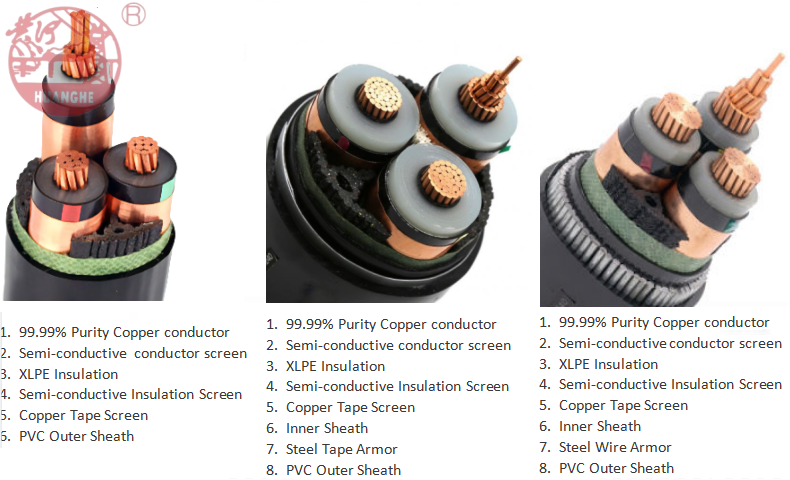

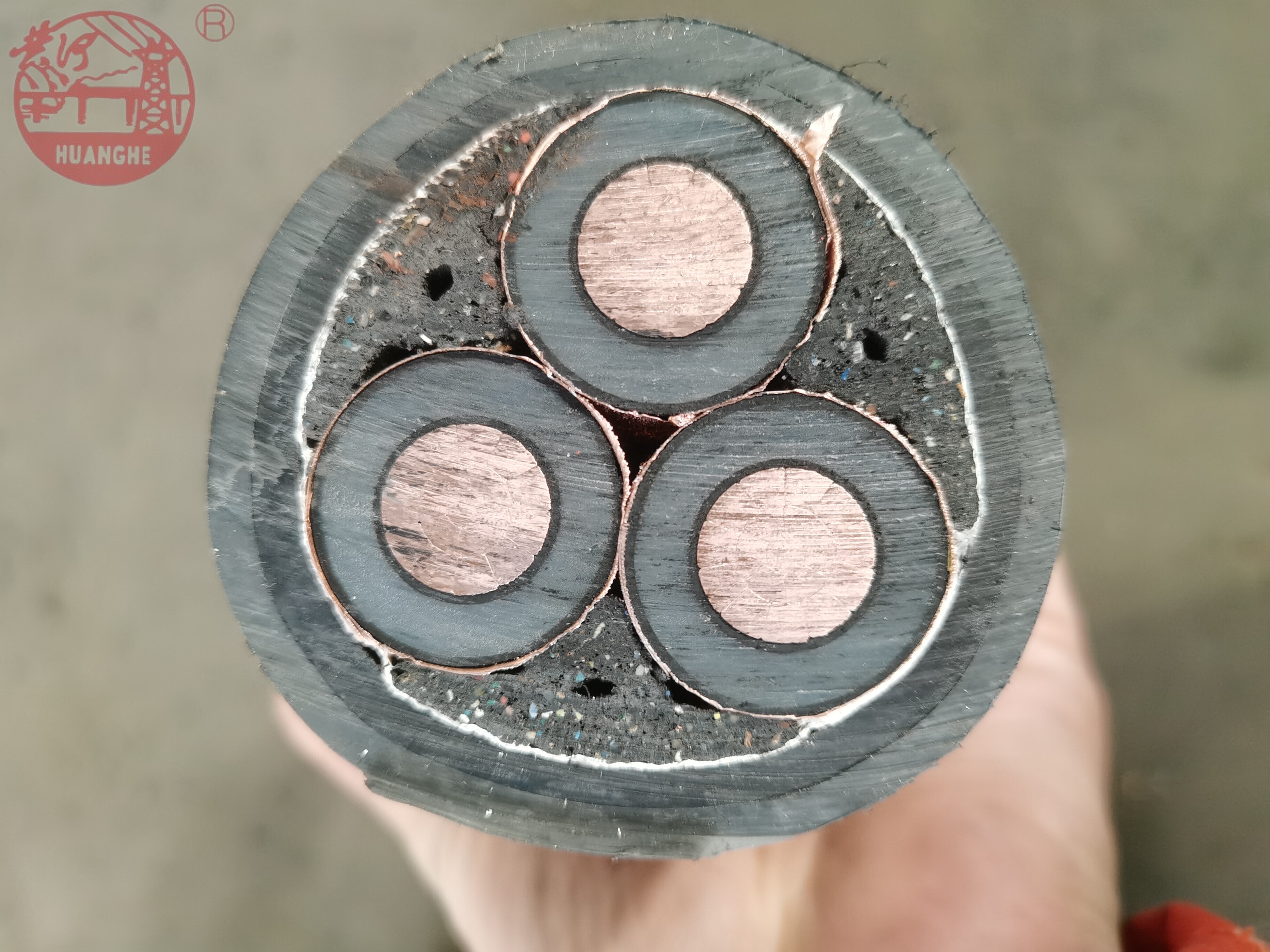

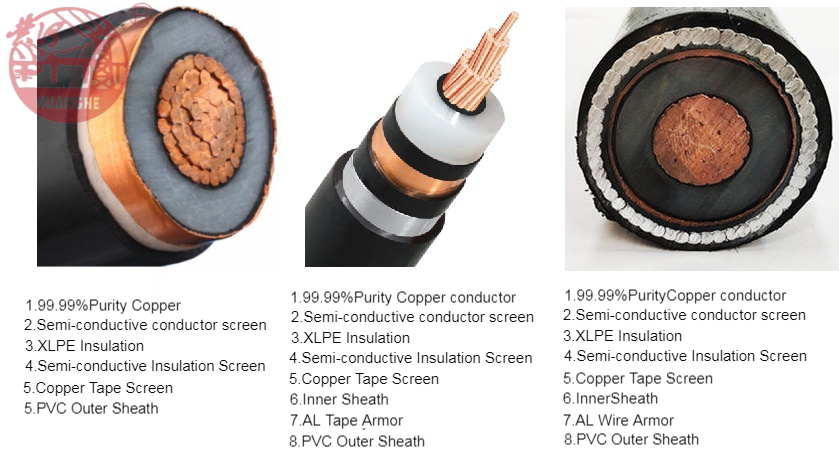

MV COPPER XLPE POWER CABLE STRUCTURE
Voltage: 3.6/6KV; 6/10KV;8.7/15KV;12/20KV; 26/35kV;
Conductor: Aluminum
Conductor Shield: semi-conductive shield
Insulation:
Crosslinked Polyethylene (XLPE)
PVC (optional)
Insulation Shield: semi-conductive shield
Metallic Shield Layer:
Copper tape Shield(CTS)
Copper Wire + Copper Tape helically shield(optional)
Armour Type (optional):
steel tape armoured (sta)
steel wire armoured (swa)
Aluminum wire armoured (awa)
Outer Sheath:
Polyvinyl chloride (PVC)
PE (Polyethylene) (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.
*Customized products are supported.
XLPE Material
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
PVC Material
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
