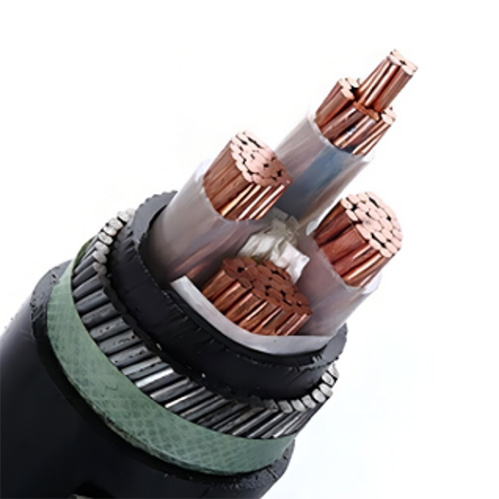

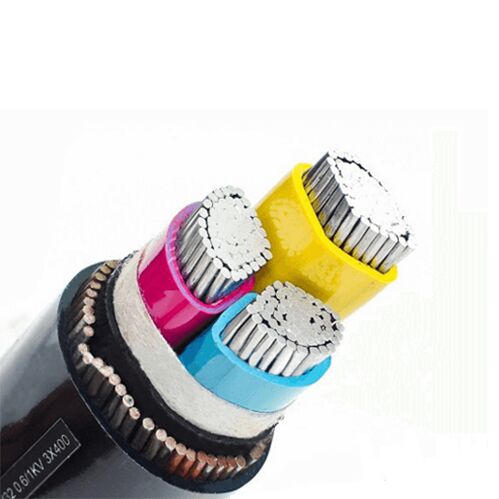

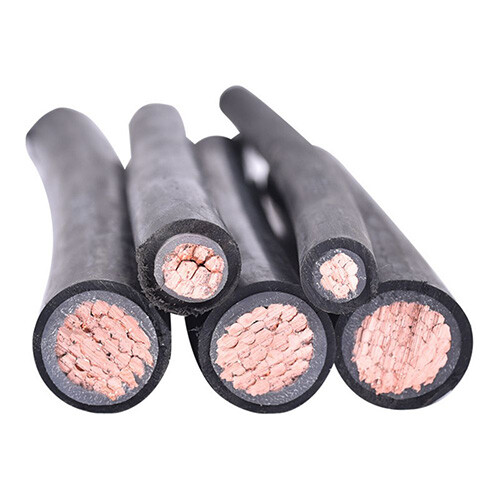

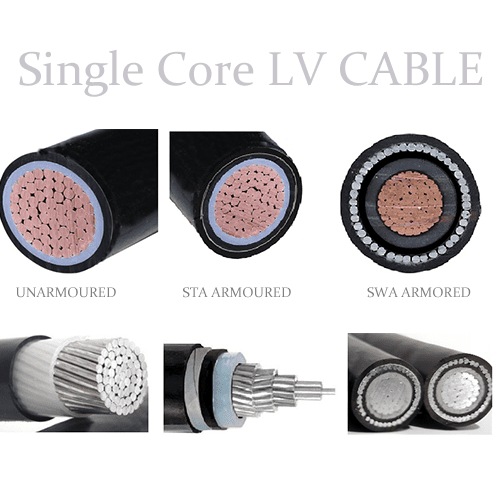

LV / MV XLPE Insulated Electric Cable
Voltage:0.6-35KV
Conductor: CU or AL
Insulation: XLPE
Sheath: PVC or PE or LSZH
Standards:CCC/UL/CE/CNAS/IEC Certificate
Optional Characteristics: *FR,FRLS,LSZH,LSOH,LSHF,anti-termite,water-proof cables and so on are available.
*Customized products are supported
STRUCTURE
MODEL
CHARACTERISTICS

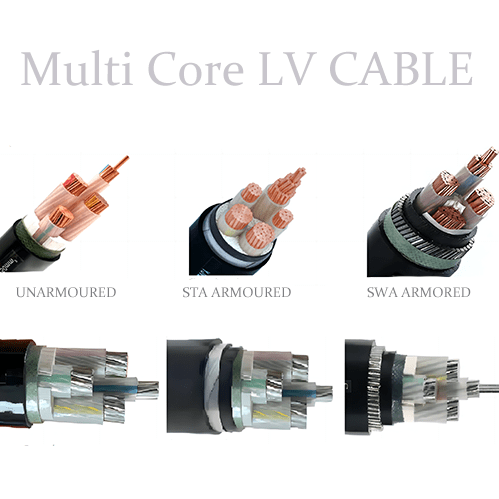

Low voltage XLPE cable STRUCTURE

Voltage: 0.6/1KV; 1.8/3.3KV;

Conductor:

Copper or Aluminum or Tinned Copper

(Solid class1; stranded class2;Flexible class5 IEC 60228 )

Insulation:

Crosslinked Polyethylene (XLPE)

PVC (optional)

Shield Layer (optional):

Copper tape(CTS);

Copper Wire Braided (CWB);

Armour Type (optional):

Steel tape armoured (sta)

steel wire armoured (swa)

Aluminum wire armoured (awa)

Aluminum tape armoured(ata)

Outer Sheath:

Polyvinyl chloride (PVC)

PE (Polyethylene)  (optional)

LSZH Compound(optional)

Standards: CCC/UL/CE/CNAS/IEC Certificate

Additional:

*FR,FRLS,LSZH,LSOH,LSHF,anti-termite,water-proof cables and so on are available..

*Customized products are supported.

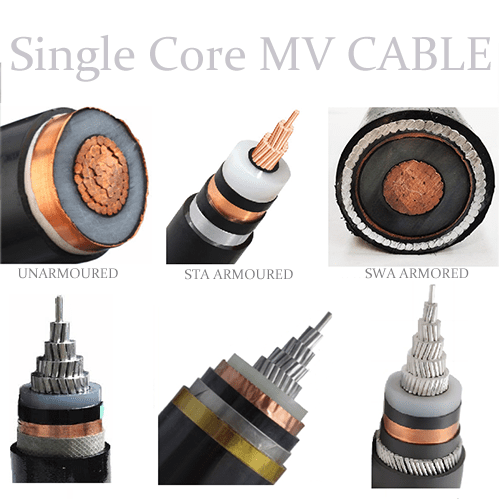

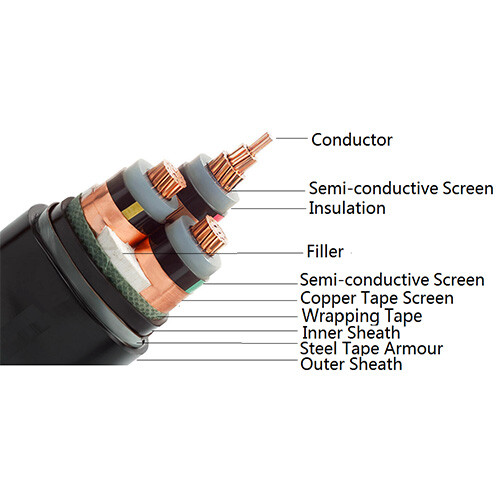

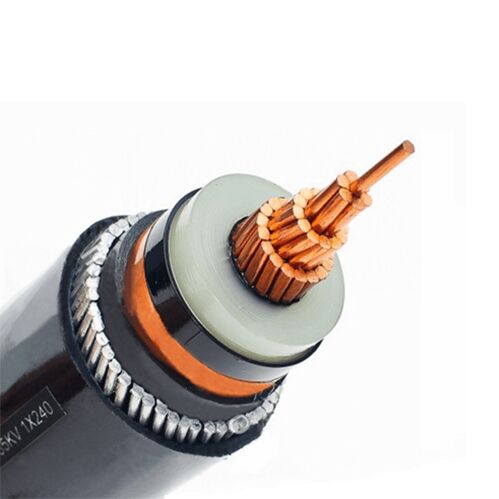

Medium voltage cable STRUCTURE

Voltage: 3.6/6KV; 6/10KV;8.7/15KV;12/20KV; 26/35kV;

Conductor: Copper or Aluminum

Insulation:

Crosslinked Polyethylene (XLPE)

PVC (optional)

Shield Layer:

Copper tape Shield(CTS)

Copper Wire + Copper Tape helically shield(optional)

Armour Type (optional):

steel tape armoured (sta)

steel wire armoured (swa)

Aluminum wire armoured (awa)

Outer Sheath:

Polyvinyl chloride (PVC)

PE (Polyethylene)  (optional)

Standards: CCC/UL/CE/CNAS/IEC Certificate

*FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.

*Customized products are supported.

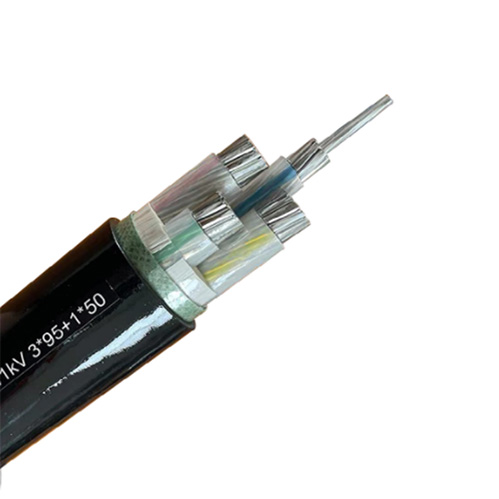

0.6/1kV XLPE Insulated Cable

XLPE Cable Models

Description

Cores

Cross Section Area

Cu/xlpe/pvc

copper core, xlpe insulated,pvc sheathed cable

1 core2 cores3 cores4 cores5 cores3+1 cores3+2 cores4+1 cores

0.5~1000mm²

Al/xlpe/pvc

Aluminum core, xlpe insulated,pvc sheathed cable

Cu/xlpe/sta/pvc

copper core, xlpe insulated, steel tape armoured,

pvc sheathed cable

4~1000mm²

Al/xlpe/sta/pvc

aluminum core, xlpe insulated, steel tape armoured,

pvc sheathed cable

Cu/xlpe/swa/pvc

copper core, xlpe insulated, steel wire armoured,

pvc sheathed cable

Al/xlpe/swa/pvc

aluminum core, xlpe insulated, steel wire armoured,

pvc sheathed cable

Note: Flame retardant cable , fire resistant, Low Smoke halogen free cable are also available.



Medium Voltage XLPE Insulated Cable

Medium Voltage

XLPE Cable Models

Description

Cores

Cross Section Area

Cu/xlpe/pvc

copper core, xlpe insulated,pvc sheathed cable

1 core

(ata, awa)

3 cores

(sta, swa, awa)

35~1000mm²

Al/xlpe/pvc

Aluminum core, xlpe insulated,pvc sheathed cable

Cu/xlpe/sta/pvc

copper core, xlpe insulated, steel tape armoured,

pvc sheathed cable

Al/xlpe/sta/pvc

aluminum core, xlpe insulated, steel tape armoured,

pvc sheathed cable

Cu/xlpe/swa/pvc

copper core, xlpe insulated, steel wire armoured,

pvc sheathed cable

Al/xlpe/swa/pvc

aluminum core, xlpe insulated, steel wire armoured,

pvc sheathed cable

Cu/xlpe/awa/pvc

copper core, xlpe insulated, aluminum wire armoured,

pvc sheathed cable

Al/xlpe/awa/pvc

aluminum core, xlpe insulated, aluminum wire armoured,

pvc sheathed cable

Note: Flame retardant cable , fire resistant, fire rated, low smoke halogen free cable are also available.

XLPE Material

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

Min.Bending Radius:

Item

Single Core

Multi core


Unarmored

Armored

Unarmored

Armored

Min.Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D

* D means Overall diameter of cables
