Name: H07V-K / H05V-K Flexible PVC WIRE
SKU: 0

Products

H07V-K / H05V-K Flexible PVC WIRE

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV
Conductor: Flex Copper Conductor
Insulation: Polyvinyl chloride (PVC)/Cross Linked Polyethylene(XLPE)
Sheath: (Optional):PVC or XLPE or LSZH
Color: Red, Yellow, Blue, Green, Black, White, Yellow/Green etc
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

Send Email

Get Inquiry

STRUCTURE

MODEL

CHARACTERISTICS

H07V-K / H05V-K Flexible PVC Cable

Voltage: 0.45/0.75KV; 0.6/1KV;

Conductor:

Copper or Tinned Copper;

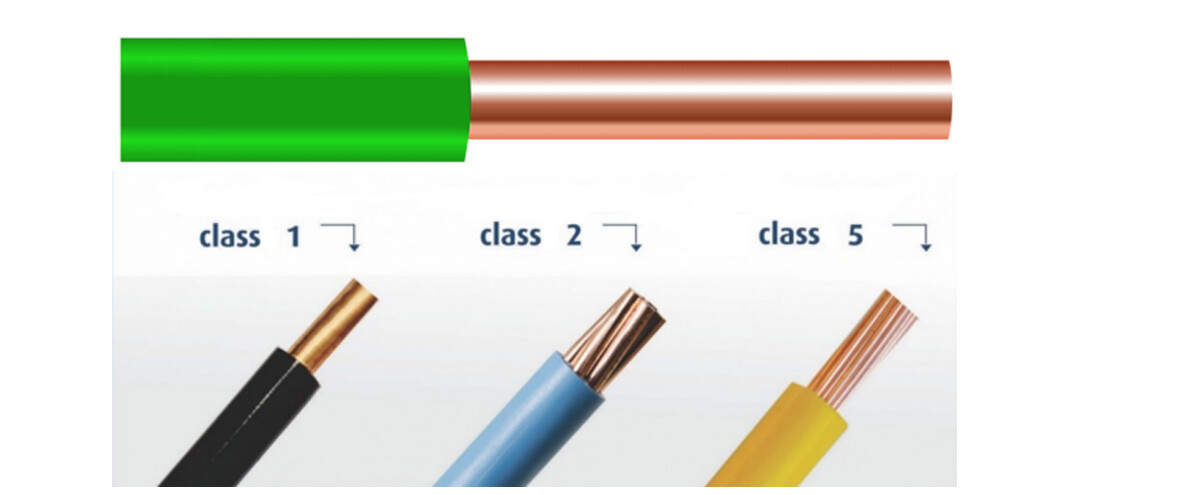

Solid class1 (optional);

stranded class2(optional);

Flexible class5;

Insulation:

Polyvinyl chloride (PVC)

XLPE (crosslinked polyethylene) (optional)

LSZH Compound(optional)

Outer Sheath(Optional):

Polyvinyl chloride (PVC)

PE (polyethylene) (optional)

LSZH Compound(optional)

Standards: CCC/UL/CE/CNAS/IEC Certificate

Additional:

*FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.

*Customized products are supported.

Flexible Wire Cable
Voltage	Models	Description	Cores	Nominal Section Area
0.3/0.5KV 0.45/0.75KV 0.6/1KV	BVR/H07V-K / H05V-K	flexible copper conductor, pvc insulated	single core,	0.5mm², 0.75mm² 1mm², 1.5mm² 2.5mm², 4mm² 6mm², 10mm² 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²

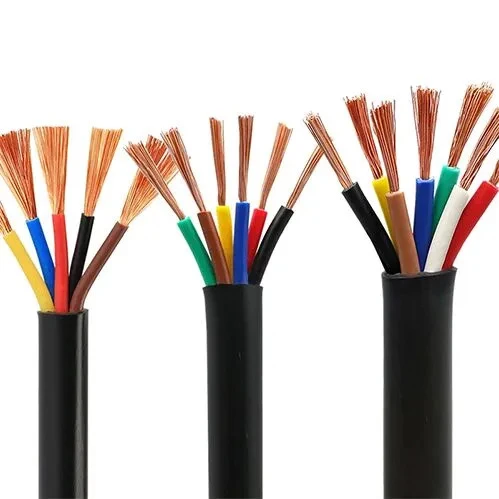

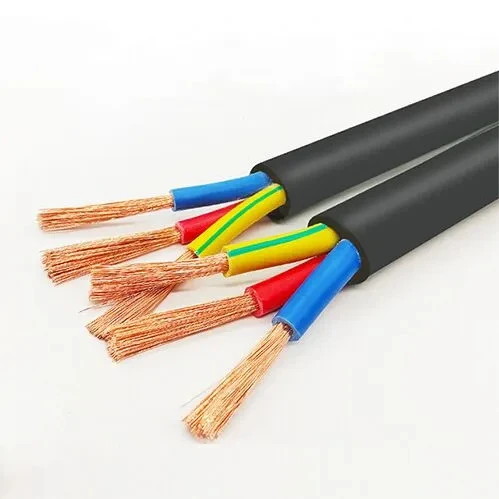

	RVV	flexible copper conductor, pvc insulated, pvc sheathed
Note: Flame retardant cable , fire resistant, Low Smoke halogen free cable are also available.
