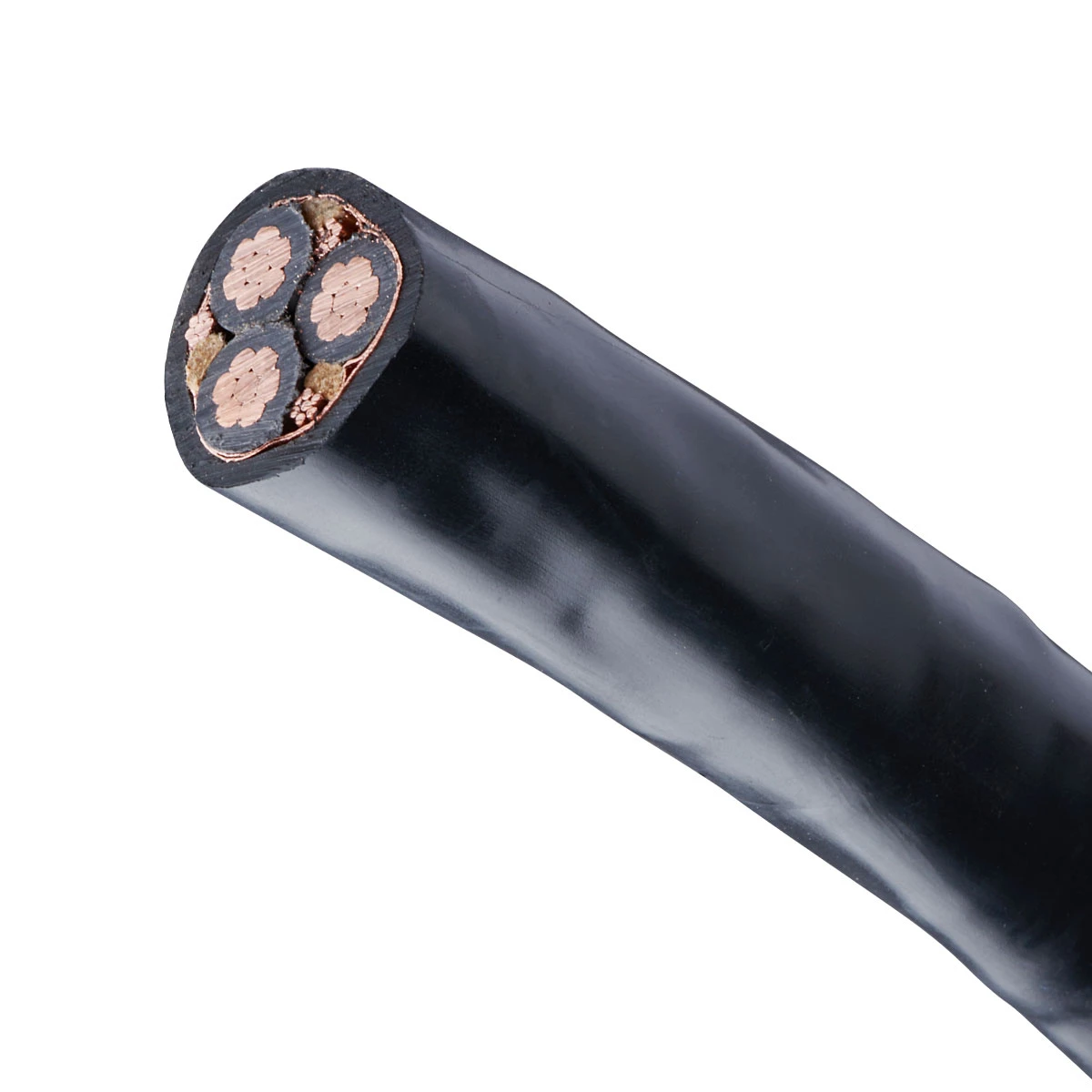

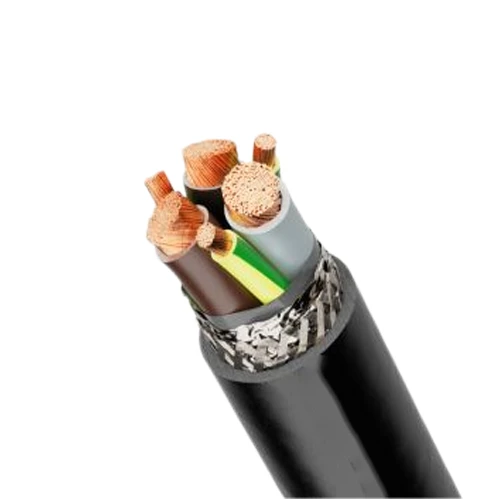

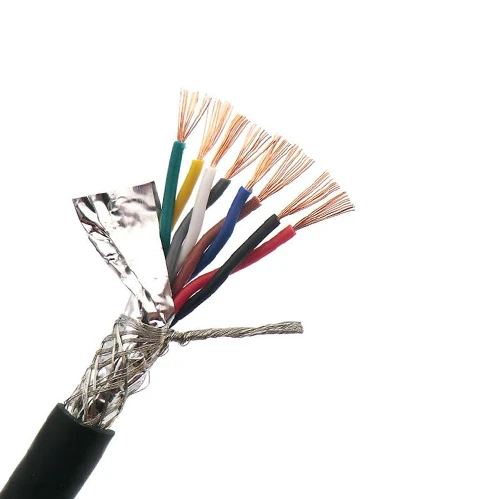

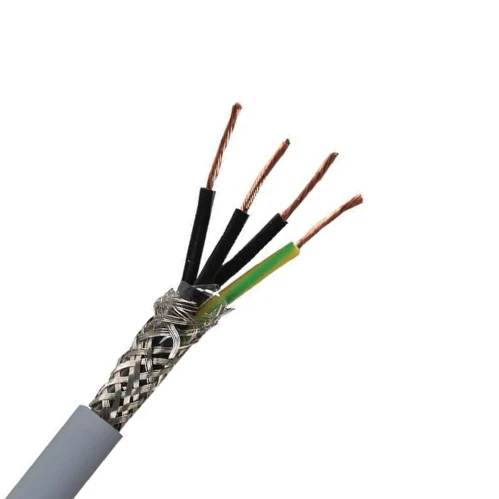

Shielded VFD Cable
Voltage: 300/500V, 600/1000v,3.3kv+
Conductor: Cu or Tinned Copper
Insulation: PVC or XLPE
Shield Type: copper tape shield, copper wire braided shield (cws), aluminum foil shield
Sheath: PVC or PE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported
Send Email
Get Inquiry
STRUCTURE
MODEL
CHARACTERISTICS

VARIABLE FREQUENCY DRIVE CABLE



Common Voltage Ratings for VFD Cables
Voltage Rating Typical Applications
300/500V Control circuits, PLC interfaces, sensors, encoders
600/1000V Standard motor power supply (VFD to motor)
2000V (2kV) High-frequency VFD outputs with voltage spikes
3.3kV+ Large motors, mining, oil & gas, and heavy industry




Typical VFD Cable Construction
Layer Description
Conductor Flexible stranded copper (Class 5 or 6)
Insulation XLPE, EPR, or PVC for thermal/electrical resistance
Shielding TCWB (Tinned Copper Wire Braid), aluminum foil + braid (EMC grade)
Inner Jacket PE, PVC, or LSZH (Low Smoke Zero Halogen)
Outer Sheath Oil-resistant PVC, PUR, or LSZH for harsh environments
Ground/PE wires Optional three symmetrical grounds or concentric system
Capacitance control Used in long runs to minimize common mode current






INTERNATIONAL STANDARDS FOR VFD CABLES
StandardOrganizationScope and Use
IEC 60092-376IECEMC shielding for industrial/marine cables
IEC 60502-1IECLow-voltage (0.6/1kV) power cable general design
UL 1277UL (USA)Tray-rated cables for control and VFD use
UL 2277UL (USA)Flexible VFD cable standard with EMC and oil resistance
BS 8436BSI (UK)Shielded/EMC cable performance and installation
IEEE 802.3af/atIEEEFor control/signal with shielding (mostly Ethernet PoE)
NEC Article 310 / 400NEC (USA)Electrical code rules for VFD cable routing and grounding






















COMMON VFD CABLE MODEL CODES (INTERNATIONAL)
Model CodeDescription
VFD EMC 3 × (X mm²) + PEThree-core motor cable with EMC shielding and ground
CU/XLPE/TCWB/PVCCopper, XLPE insulation, tinned copper wire braid, PVC sheath
CU/XLPE/TCWB/LSZHSame as above, with low smoke zero halogen sheath
LAPP ÖLFLEX® VFDGerman brand, UL/CSA listed VFD motor cable
HELUKABEL TOPFLEX®German flexible EMC shielded VFD cable series
SAB VFD-Servo SeriesFlexible, drag-chain compatible VFD cables with EMC shielding











SUMMARY TABLE: VOLTAGE & STRUCTURE OVERVIEW
Use CaseVoltageShieldingJacket TypeTypical Standard
Small automation lines300/500VFoil or TCWBPVC or LSZHIEC 60228, UL 758
Industrial VFD motors600/1000VTCWB + Foil (EMC)PVC/LSZH/PURIEC 60502-1, UL 1277
High harmonic loads2kVHeavy-duty EMCLSZH or PURUL 2277, BS 8436
Drag chains / robotics600V+TCWB + Flex coresPURSAB/HELUKABEL specs




*Selection Tips:

  • Long runs/high interference: Use double shielding (aluminum foil + copper braid) and ground shield at both ends

  • Tight spaces: Choose PUR outer jacket cables for superior flexibility

  • Fire-sensitive areas: Use LSZH jacketed cables for smoke-free installations

  • Combined power + signal: Use hybrid VFD cables with integrated feedback/control pairs







CHARACTORISTICS OF DIFFERENT MATERIALS
TYPE OF MATERIALABBR.PERFORMANCE
crosslinked polyethyleneXLPEMax. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃(max. 5s)
Min. service temperature: -40℃
(fixed and protected installations)
Thermosetting material, excellent heat resistance, mechanical strength and electrical properties.
polyvinyl chloridePVCambient temperature range: -15 ~ + 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Thermoplastic material, low cost, good flame retardant, moderate flexibility, but high temperature resistance, aging poor; Suitable for civil and general industrial cables.
Ethylene propylene rubberEPR
ambient temperature range: -40 ~ +120℃
Max. short-circuit temperature: 150℃(max. 5s)
Excellent heat, ozone, UV resistance; poor oil resistance
polyurethanePURambient temperature range: -40 ~ +90℃
thermoplastic material, Superb abrasion, oil, and tear resistance; soft but low heat resistance



Min.Bending Radius:


Item

Single Core

Multi core


Unarmored

Armored

Unarmored

Armored

Min.Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D
