Conductor Options: Aluminum Alloy or Flexible Tinned Copper (Class 5)
Insulation System: Halogen-Free, Cross-Linked XLPO Compound (Double Insulated)
Compliance Standards: IEC, EN, BS, UL, CSA, TÜV
Quality Certification: CB Test Certificate, CCC, ISO 9001, ISO 1400
*Our custom cable services are designed to meet your specific requirements.
Email: sales8@hihuanghecable.com

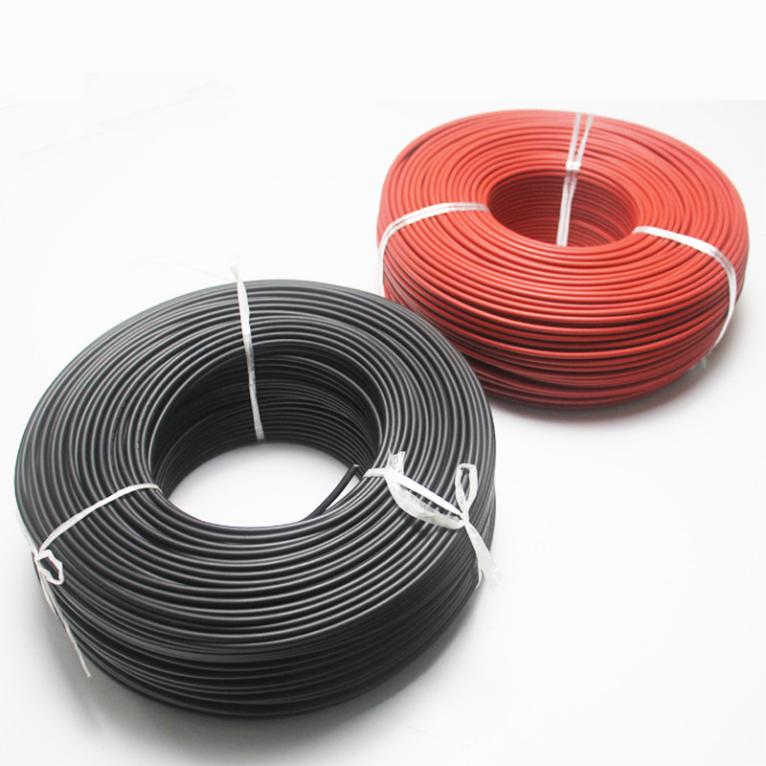

PV1-F / H1Z2Z2-K Solar Cable
Product Overview
Compliance & Standards
· PV1-F: TÜV 2Pfg 1169
· H1Z2Z2-K: EN 50618 / IEC 62930
Key Features
· Voltage Rating: Up to 1.5kV DC
· Environmental Resistance: Excellent UV, weather, ozone, and hydrolysis resistance
· Safety: Halogen-free, low smoke (LSZH), and flame retardant
· Flexibility: Class 5 flexible conductor for easy installation
· Durability: Long service life (25+ years) in harsh outdoor environments

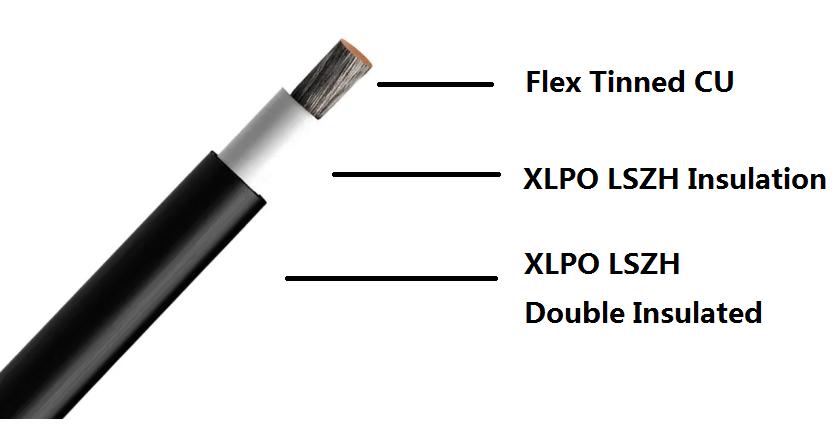

Construction
· Conductor: Tinned copper, Class 5 flexible
· Insulation: Cross-linked compound (LSZH for H1Z2Z2-K,XLPO/XLPE)
· Sheath: Cross-linked halogen-free compound
Technical Data
· Temperature Range:
· Fixed Installation: -40°C to +90°C
· Max Conductor Temp: 120°C (short circuit)
· Voltage Rating: 1.0/1.0 kV AC | 1.5 kV DC
· Bending Radius: 4 × cable diameter
Applications
· Utility-scale solar power plants and solar farms
· Residential and commercial rooftop photovoltaic systems
· Interconnections between PV modules and inverters
· All-weather outdoor and indoor installations
Advantages of H1Z2Z2-K (vs. Traditional PV1-F)
· Higher Safety Performance: Utilizing LSZH (Low Smoke Zero Halogen) materials.
· Enhanced Environmental Protection: Better eco-friendly profile.
· Latest Standards: Full compliance with the newest European regulations.
· Long-Term Durability: Optimized for the lifecycle of modern large-scale projects.
Available Sizes：
1.5mm² – 240mm² (customizable）
High-Performance 1.5kV/1.8kV DC Tinned Copper & Aluminum XLPO Solar Cable
This premium dual-insulated solar cable is engineered for high-efficiency photovoltaic systems. Built to withstand extreme environmental stress, it ensures a 25+ year operational lifespan in residential, commercial, and utility-scale solar farms
- Optimized Voltage: Rated for 1.5kV DC (1.8kV Max), meeting modern high-voltage string requirements for reduced power loss.
- Superior Conductivity: Available in Class 5 Flexible Tinned Copper (highest corrosion resistance) or Aluminum Alloy (lightweight, cost-effective for large projects).
- Advanced Insulation: Double-insulated with Halogen-Free Cross-linked Polyolefin (XLPO). This material is UV-resistant, ozone-resistant, and does not emit toxic gases during fire.
Global Compliance: Manufactured to meet the most rigorous international standards, including EN 50618 (H1Z2Z2-K), TÜV (PV1-F), and IEC 62930
- Extremely strong weather resistance :
It has excellent resistance to ultraviolet (UV), ozone and hydrolysis, and is designed for long-term outdoor exposure environments, fearless of harsh climates. - Physical protection and durability :
It has extremely high abrasion resistance and can withstand both extreme high temperatures and severe cold, ensuring stability in complex terrain. - Designed specifically for photovoltaic systems :
designed for efficient interconnection between photovoltaic (PV) panels and between panels and inverters. - Ultra-long service life :
Optimized for DC operation, it has an extremely long service life under outdoor exposure conditions, with an expected service
- Rated Voltage :
- AC (Alternating Current): 0.6 / 1 kV
- DC (Direct Current): 1 / 1.8 kV
- Test Voltage :
- AC: 6.5 kV (50Hz, 5min, 20±5℃) – No breakdown
- DC: 15 kV (5min, 20±5℃) – No breakdown
- Temperature rating :
- Working temperature: -45°C to +125°C
- Maximum Conductor Temp: 125°C (Sustainable for up to 20 hours)
- Short circuit temperature rise limit: 280°C (lasts up to 5 seconds)
- Service life :
- Designed service life ≥ 25 years
- Bending Radius :
- Fixed Installation: > 4 × Cable Outer Diameter (4D)
- Occasional Movement: > 5 × cable outer diameter (5D)
Technical Specifications: High-Performance DC Solar PV Cable
Solar Cable Technical Data Sheet:
Why These Specs Matter for Your Project:
precision Engineering: The
olerance ensures consistent diameter for a perfect fit with standard MC4 connectors.
Safety First: Double-insulated XLPO provides superior flame retardancy and zero-halogen safety.
- Durability: Rated for 1500V DC to support modern high-voltage solar strings.
