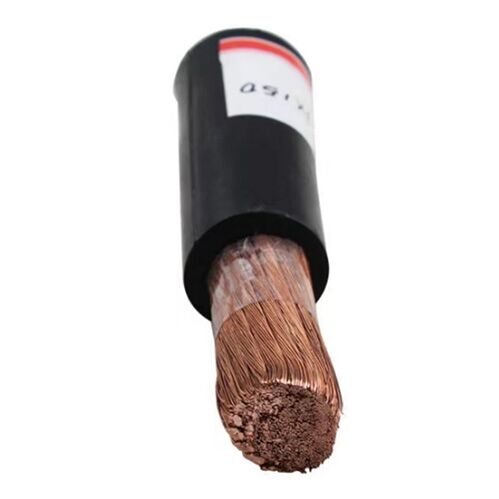

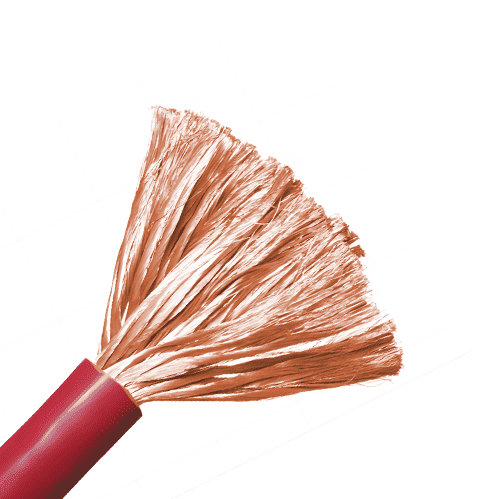

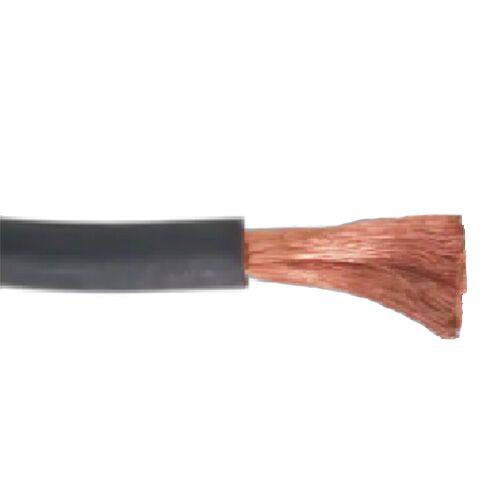

Welding Cable
Voltage：600V
Conductor: Flexible Copper/Tinned Copper
Insulation: NR,NBR,EPR,CPE,silicone Rubber Compound
Standards:CCC/UL/CE/CNAS/IEC Certificate
*Customized products are supported
Send Email
Get Inquiry
STRUCTURE
MODEL
CHARACTERISTICS

Welding Cable(Rubber Insulated Cable)

Voltage: 300/500V;450/750V; 600/1000V;

Conductor: flexible copper conductor or Tinned Copper conductor (Flex class 5 IEC 60228)

Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)

Colors: black, red, orange etc.

Standards: CCC/UL/CE/IEC Certificate





Category/TypeCommon ModelConductor StructureSheath MaterialMaterial FeaturesApplicable StandardVoltage RatingTypical Applications
Chinese Standard Light DutyYHMulti-stranded bare copperNatural rubberFlexible, wear-resistant, oil-resistant, bendableGB T 5013.6(equal to IEC60245)450 750VWelding machines, tools short-distance
Chinese Standard Extra FlexibleYHFUltra-fine stranded copperElastomeric rubberExtra soft, bendable, cold-resistant, durableGB T 5013.6(equal to IEC60245)450 750VHigh-flex mobile welding tasks
European Single CoreH01N2 DFine-stranded bare copperNeoprene or NBR rubberEU compliant, flexible, oil and heat resistantIEC 60245 6100VWelding cables in European market
European Multi CoreH01N2 EMulti-core stranded copperNeoprene or NBR rubberSimilar to H01N2 D, for portable equipmentIEC 60245 6100VPortable welding tools
US StandardWelding Cable 600VMulti-stranded bare copperEPR and CPEUL CSA standard, heat and flame resistantUL 1581 CSA600VWelding tools in North America
Japanese StandardWelding Cable 100VBare or tinned copperNatural rubberAnti-oxidation, wear-resistant, softJIS C 3406100VWelding machines in Japan
Heavy IndustrialYCW Welding CableThick stranded copperRubber with outer sheathHeavy duty, oil and tear resistantGB T 5013.40.6 1kVConstruction, mining, welding trailers
Cold Resistant TypeYHF-CRUltra-fine tinned copperTPE or CR rubberFlexible in -40C, does not harden in cold weatherGB T 5013.6(equal to IEC60245)450 750VCold region operations
Flame Retardant TypeZR YH or ZR YHFMulti-stranded copperFlame retardant rubberMeets GB T18380 flame retardant testGB and Enterprise SpecGB T 5013.6(equal to IEC60245)450 750VHigh fire risk welding applications

Min.Bending Radius: 6 × D


Catalogue from Huanghe Cable .pdf

Please contact us for more details




TYPE OF MATERIALABBR.PERFORMANCE
NATURAL RUBBERNRambient temperature range: -40 ~ +70℃
Soft, elastic, wear-resistant; poor oil & aging resistance
ETHYLENE PROPYLENE RUBBEREPRambient temperature range: -40 ~ +90℃
EPMMax. short-circuit temperature: 250℃(max. 5s)
EPDMExcellent heat, ozone, UV resistance; poor oil resistance
NITRILE RUBBER BUNANBRambient temperature range: -30 ~ +90℃
Excellent oil resistance, high mechanical strength，but poor weather resistance; Suitable for oily environment or near mechanical equipment.
NEOPRENECRambient temperature range: -35 ~ +105℃
Good overall performance, oil resistance, aging resistance, flame retardant, ozone resistance; Suitable for outdoor and light industrial use.
SILICONE RUBBERSilicone/SIambient temperature range: -60 ~ +180℃
Max. short-circuit temperature: 200℃(max. 5s)
Excellent high/low temperature performance, excellent electrical insulation, but low mechanical strength; Suitable for high temperature, clean, medical or high-end electronic environments.
POLYURETHANEPURambient temperature range: -40 ~ +90℃
thermoplastic material, Superb abrasion, oil, and tear resistance; soft but low heat resistance
TRIPHENYL PHOSPHATETPE/ambient temperature range: -40 ~ +105℃
TPPthermoplastic elastomer, Flexible, recyclable, halogen-free, low-smoke, eco-friendly


Min.Bending Radius: 6 × D
