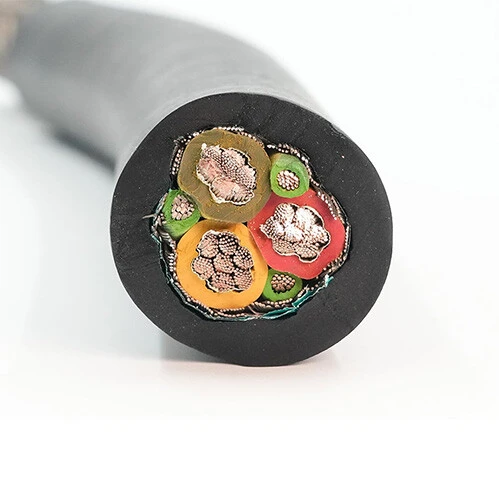

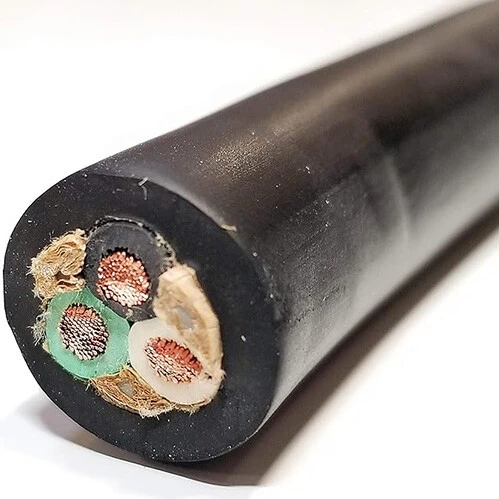

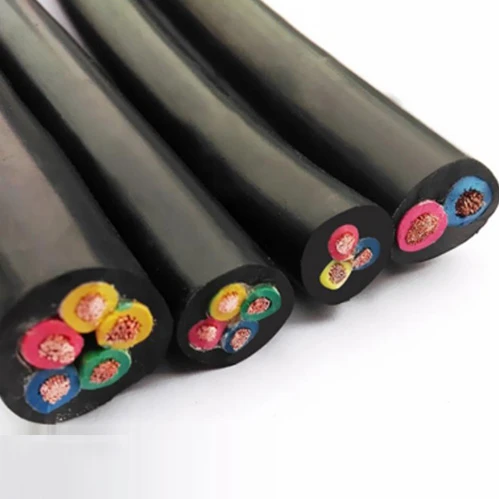

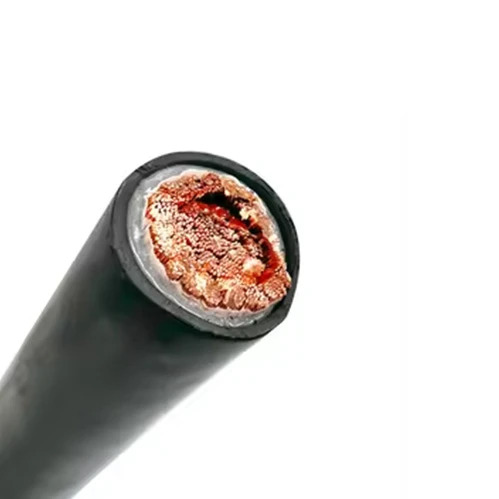

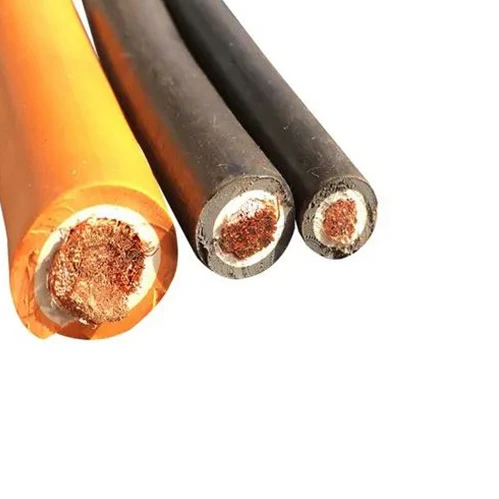

Heavy Duty Rubber Cable
Voltage：300/500V;450/750V; 600/1000V;
Conductor: Flexible Copper/Tinned Copper
Insulation: NR,NBR,EPR,CPE,silicone Rubber Compound
Sheath: NR,NBR,EPR,CPE,silicone Rubber Compound
Standards:CCC/UL/CE/CNAS/IEC Certificate
*Customized products are supported
Send Email
Get Inquiry
STRUCTURE
MODEL
CHARACTERISTICS
ADVANTAGES
PACKAGE
FAQ

Rubber Sheathed Cable

Voltage: 300/500V;450/750V; 600/1000V;

Conductor: flexible copper conductor or Tinned Copper conductor (Flex class 5 IEC 60228)

Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)

Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)

Colors: black, red, orange etc.

Standards: CCC/UL/CE/IEC Certificate






NORMAL MORDEL OF RUBBER SHEATHED CABLE
Cable TypeStructure DescriptionApplicable StandardsMain ApplicationsKey Features
H05RR-FFlexible stranded copper, natural rubber insulation and sheathIEC 60245-1, IEC 60245-2Household appliances, office equipmentLightweight, flexible, 300/500V
H07RN-FFine stranded copper, EPR insulation, CPE rubber sheathIEC 60245-4Construction tools, industrial equipmentOil-resistant, waterproof, 450/750V
H01N2-DExtra flexible copper, rubber insulation and sheathIEC 60245-6Welding machinesHighly flexible, abrasion-resistant
YH / YHFMulti-stranded copper, rubber insulation & sheathGB/T 5013.6Welding equipment, mobile powerFlame retardant, extra flexibility (YHF)

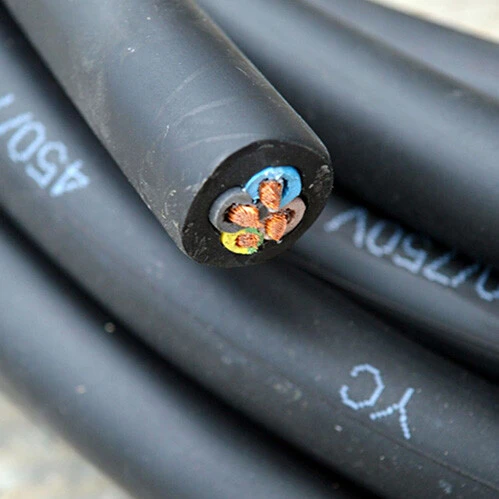

YC / YCWCopper conductor, rubber insulation & thick sheathGB/T 5013.4Mining, industrial power distributionHeavy-duty, UV-resistant, waterproof
NSHÖUFine copper, rubber insulated and sheathedVDE 0250 Part 812Wind power, railways, flexible connectionsFlame retardant, halogen-free
OZOF / H05RN-F / H07RN-FFlexible copper, rubber sheathEN 50525-2-21Indoor/outdoor power supplyWater-resistant, good for mobile use
Welding Cable 600V (UL)Flexible copper, EPR insulation, CPE sheathUL 1581, CSA C22.2Welding, battery link, industrial cableHigh heat tolerance, flame-resistant
Rubber Control CableMulti-core flexible copper, rubber sheathIEC 60245, DIN VDE 0281Mobile control systems, roboticsCold resistant, mechanical strength
Mining Rubber Cable (MCP / MSHF)Copper conductor, EPR/XLPE insulation, rubber sheathAS/NZS 2802, MT818Mining machinery, drilling rigsAbrasion and impact resistant, heavy load capable
CHARACTORISTICS OF DIFFERENT MATERIALS
TYPE OF MATERIAL                ABBR.                PERFORMANCE
NATURAL RUBBER                NR                ambient temperature range: -40 ~ +70℃
Soft, elastic, wear-resistant; poor oil & aging resistance
ETHYLENE PROPYLENE RUBBER                EPR                ambient temperature range: -40 ~ +120℃
EPM                Max. short-circuit temperature: 150℃(max. 5s)
EPDM                Excellent heat, ozone, UV resistance; poor oil resistance
NITRILE RUBBER BUNA                NBR                ambient temperature range: -30 ~ +90℃
Excellent oil resistance, high mechanical strength，but poor weather resistance; Suitable for oily environment or near mechanical equipment.
NEOPRENE                CR                ambient temperature range: -35 ~ +105℃
Good overall performance, oil resistance, aging resistance, flame retardant, ozone resistance; Suitable for outdoor and light industrial use.
SILICONE RUBBER                Silicone/SI                ambient temperature range: -60 ~ +180℃
Max. short-circuit temperature: 200℃(max. 5s)
Excellent high/low temperature performance, excellent electrical insulation, but low mechanical strength; Suitable for high temperature, clean, medical or high-end electronic environments.
POLYURETHANE                PUR                ambient temperature range: -40 ~ +90℃
thermoplastic material, Superb abrasion, oil, and tear resistance; soft but low heat resistance
TRIPHENYL PHOSPHATE                TPE/                ambient temperature range: -40 ~ +105℃
TPP                thermoplastic elastomer, Flexible, recyclable, halogen-free, low-smoke, eco-friendly




Min.Bending Radius: 6 × D

Catalogue from Huanghe Cable.pdf

Please contact us for more details




  • High purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety, low resistance, stable voltage, more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath, weather-resistant and oil-resistant, soft and easy to install.

  • High cost-effectiveness

    Environment friendly, safer use, better quality, low cost and sooner delivery.

  • International standards meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 12 hours.

    Huanghe Cable Group supports you always.

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.



  • Q：What's the difference between the armored Types?

    A: The most common armored models are generally SWA (steel wire armored) and STA(steel tape armored).

    SWA Cables is suitable for high drop areas and can withstand mechanical external forces and considerable tension.

    STA Cables is suitable for buried laying and can withstand mechanical external forces but cannot withstand large tensile forces.
