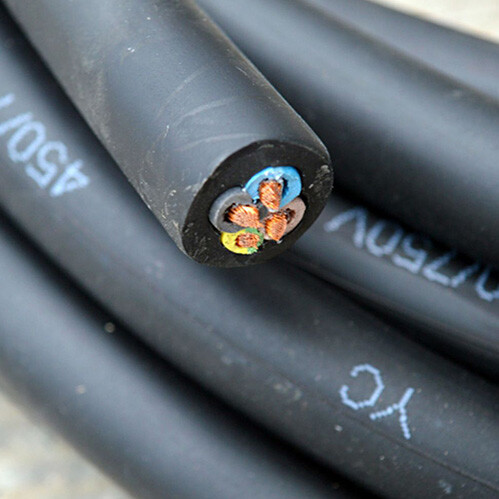

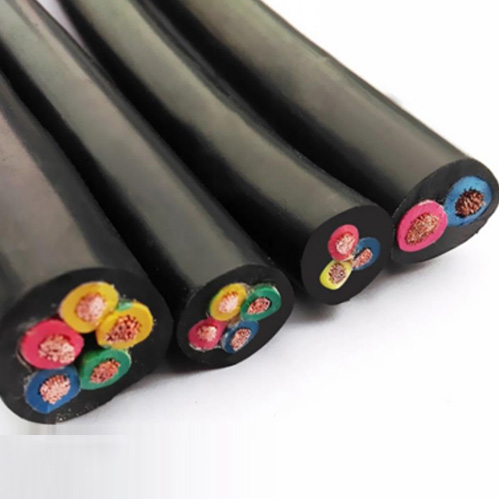

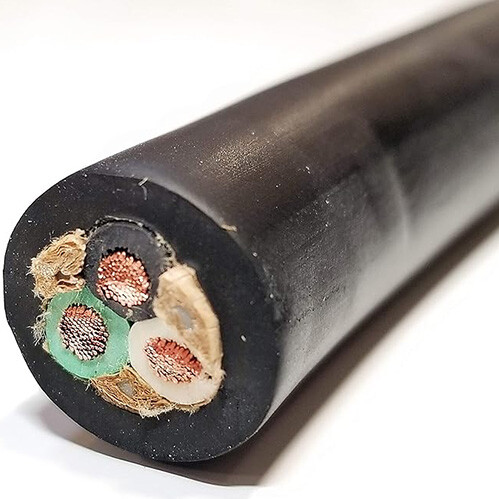

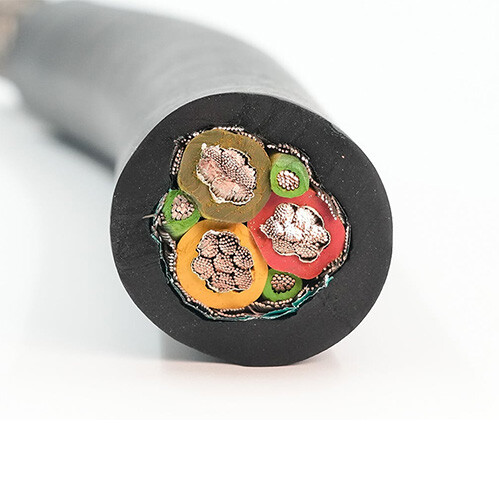

Heavy Duty Rubber Cable
Voltage：300/500V;450/750V; 600/1000V;
Conductor: Flexible Copper/Tinned Copper
Insulation: NR,NBR,EPR,CPE,silicone Rubber Compound
Sheath: NR,NBR,EPR,CPE,silicone Rubber Compound
Standards:CCC/UL/CE/CNAS/IEC Certificate
*Customized products are supported
Send Email
Get Inquiry
STRUCTURE
MODEL
CHARACTERISTICS

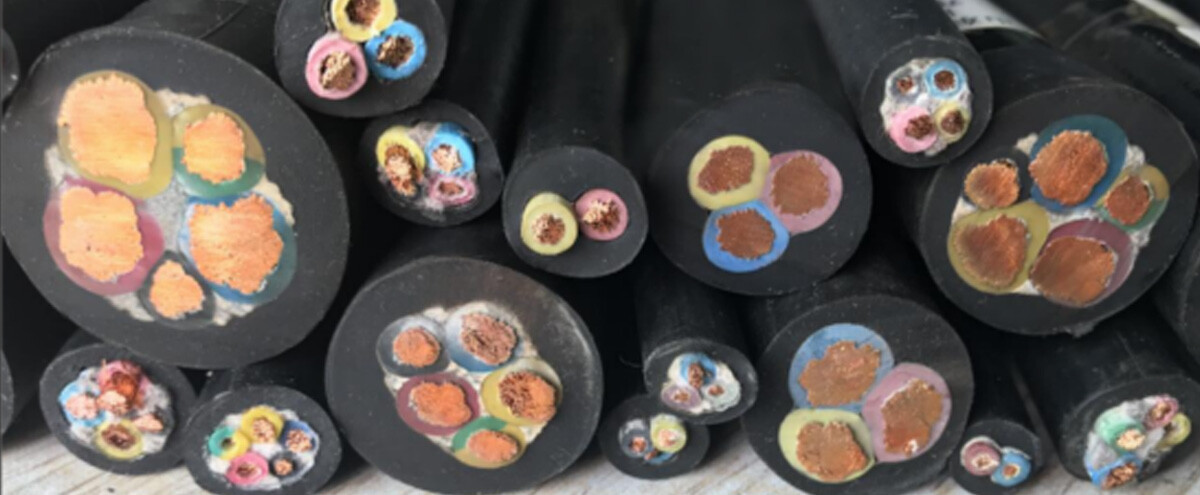

Rubber Sheathed Cable

Voltage: 300/500V;450/750V; 600/1000V;

Conductor: flexible copper conductor or Tinned Copper conductor (Flex class 5 IEC 60228)

Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)

Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)

Colors: black, red, orange etc.

Standards: CCC/UL/CE/IEC Certificate






NORMAL MORDEL OF RUBBER SHEATHED CABLE
Cable TypeStructure DescriptionApplicable StandardsMain ApplicationsKey Features
H05RR-FFlexible stranded copper, natural rubber insulation and sheathIEC 60245-1, IEC 60245-2Household appliances, office equipmentLightweight, flexible, 300/500V
H07RN-FFine stranded copper, EPR insulation, CPE rubber sheathIEC 60245-4Construction tools, industrial equipmentOil-resistant, waterproof, 450/750V
H01N2-DExtra flexible copper, rubber insulation and sheathIEC 60245-6Welding machinesHighly flexible, abrasion-resistant
YH / YHFMulti-stranded copper, rubber insulation & sheathGB/T 5013.6Welding equipment, mobile powerFlame retardant, extra flexibility (YHF)
YC / YCWCopper conductor, rubber insulation & thick sheathGB/T 5013.4Mining, industrial power distributionHeavy-duty, UV-resistant, waterproof
NSHÖUFine copper, rubber insulated and sheathedVDE 0250 Part 812Wind power, railways, flexible connectionsFlame retardant, halogen-free
OZOF / H05RN-F / H07RN-FFlexible copper, rubber sheathEN 50525-2-21Indoor/outdoor power supplyWater-resistant, good for mobile use

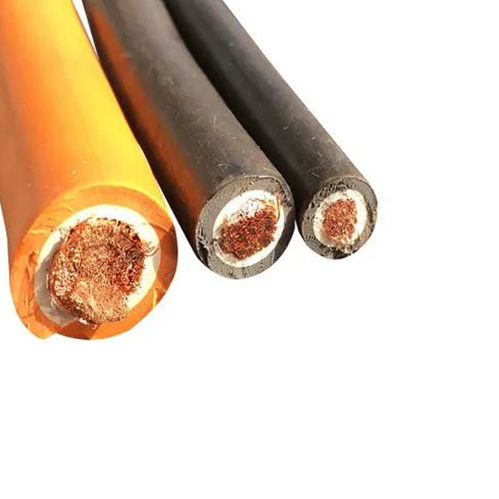

Welding Cable 600V (UL)Flexible copper, EPR insulation, CPE sheathUL 1581, CSA C22.2Welding, battery link, industrial cableHigh heat tolerance, flame-resistant
Rubber Control CableMulti-core flexible copper, rubber sheathIEC 60245, DIN VDE 0281Mobile control systems, roboticsCold resistant, mechanical strength
Mining Rubber Cable (MCP / MSHF)Copper conductor, EPR/XLPE insulation, rubber sheathAS/NZS 2802, MT818Mining machinery, drilling rigsAbrasion and impact resistant, heavy load capable
CHARACTORISTICS OF DIFFERENT MATERIALS
TYPE OF MATERIAL                ABBR.                PERFORMANCE
NATURAL RUBBER                NR                ambient temperature range: -40 ~ +70℃
Soft, elastic, wear-resistant; poor oil & aging resistance
ETHYLENE PROPYLENE RUBBER                EPR                ambient temperature range: -40 ~ +90℃
EPM                Max. short-circuit temperature: 250℃(max. 5s)
EPDM                Excellent heat, ozone, UV resistance; poor oil resistance
NITRILE RUBBER BUNA                NBR                ambient temperature range: -30 ~ +90℃
Excellent oil resistance, high mechanical strength，but poor weather resistance; Suitable for oily environment or near mechanical equipment.
NEOPRENE                CR                ambient temperature range: -35 ~ +105℃
Good overall performance, oil resistance, aging resistance, flame retardant, ozone resistance; Suitable for outdoor and light industrial use.
SILICONE RUBBER                Silicone/SI                ambient temperature range: -60 ~ +180℃
Max. short-circuit temperature: 200℃(max. 5s)
Excellent high/low temperature performance, excellent electrical insulation, but low mechanical strength; Suitable for high temperature, clean, medical or high-end electronic environments.
POLYURETHANE                PUR                ambient temperature range: -40 ~ +90℃
thermoplastic material, Superb abrasion, oil, and tear resistance; soft but low heat resistance
TRIPHENYL PHOSPHATE                TPE/                ambient temperature range: -40 ~ +105℃
TPP                thermoplastic elastomer, Flexible, recyclable, halogen-free, low-smoke, eco-friendly




Min.Bending Radius: 6 × D
