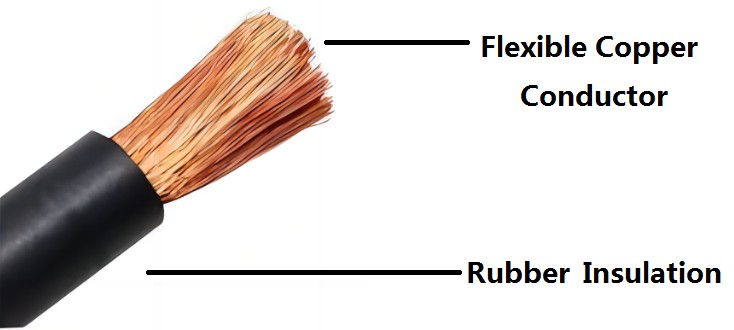

Conductor: Flexible Copper/Tinned Copper
Insulation: Rubber Compound
Standards:CCC/UL/CE/CNAS/IEC Certificate
*Customized products are supported

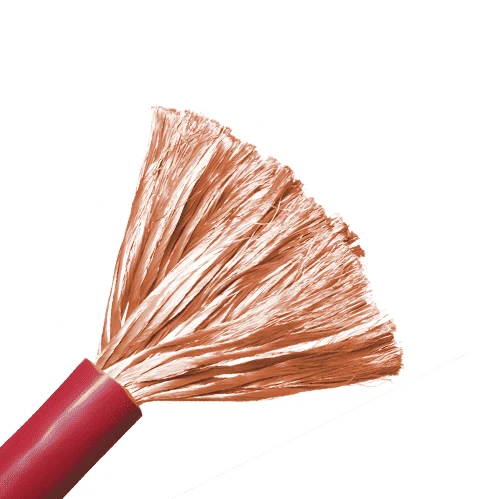

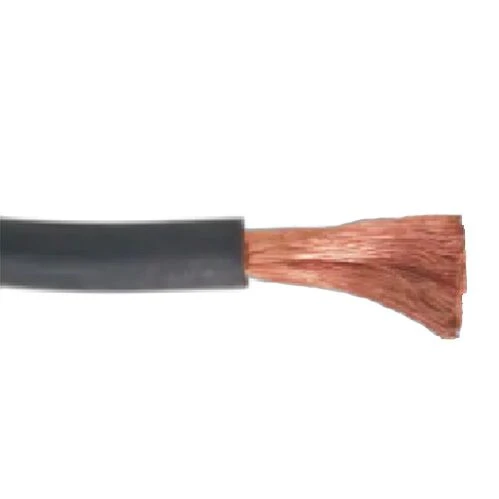

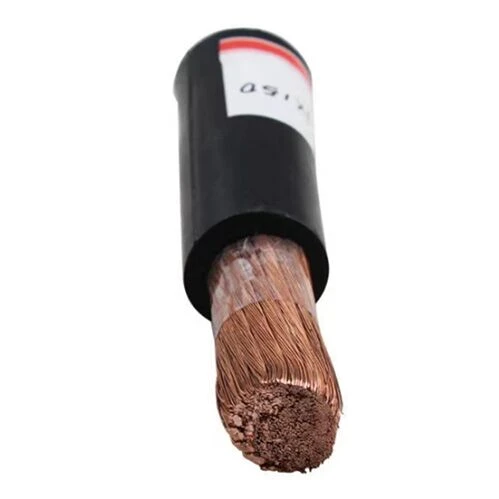

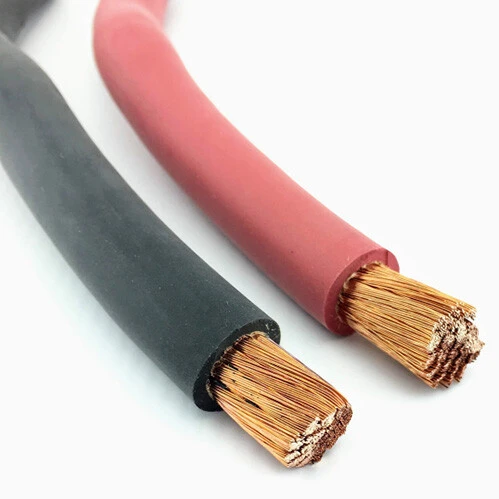

Welding Cable
Voltage: 300/500V;450/750V; 600/1000V;
Conductor: flexible copper conductor or Tinned Copper conductor (Flex class 5 IEC 60228)
Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)
Colors: black, red, orange etc.
Standards: CCC/UL/CE/IEC Certificate
Natural Rubber Material:
Min.temperature when installation: 0℃
Service temperature range: -20℃ to +60℃ (fixed and protected installations)
Silicone Rubber Material:
Min.temperature when installation: 0℃
Service temperature range: -65℃ to +200℃ (fixed and protected installations)
NBR Material:
Min.temperature when installation: 0℃
Service temperature range: -40℃ to +90℃ (fixed and protected installations)
Min.Bending Radius: 6 × D
Catalogue from Huanghe Cables - Jenny .pdf
Please contact us for more details
High purity thick raw materials
99.99% Copper/99.6% Aluminum Safety, low resistance, stable voltage, more power saving
Low eccentricity, uniform thickness
Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.
Safer use, Flame Retardant and environment friendly
All new and high quality sheath, weather-resistant and oil-resistant, soft and easy to install.
High cost-effectiveness
Environment friendly, safer use, better quality, low cost and sooner delivery.
International standards meet different needs.
Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.
Quick response within 12 hours.
Huanghe Cable Group supports you always.
Product warranty for one year if the product is correctly installed and used.
Professional Team
Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
Q：What's the difference between the armored Types?
A: The most common armored models are generally SWA (steel wire armored) and STA(steel tape armored).
SWA Cables is suitable for high drop areas and can withstand mechanical external forces and considerable tension.
STA Cables is suitable for buried laying and can withstand mechanical external forces but cannot withstand large tensile forces.
