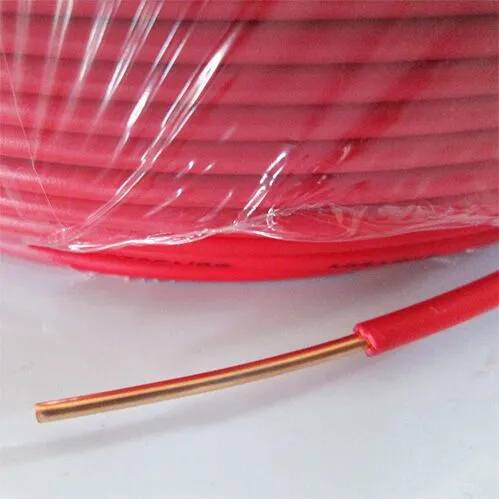

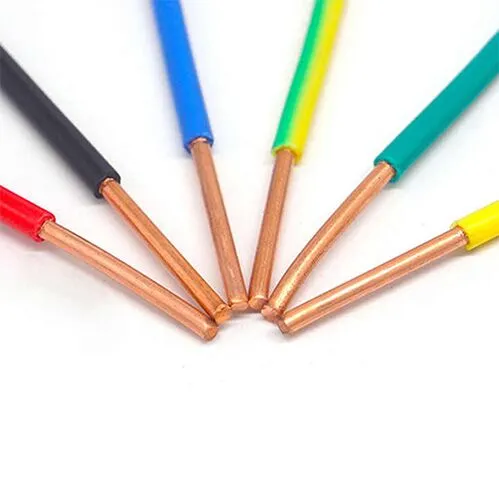

Single Core PVC Wire Cable
Single Core PVC Wire Cable
Voltage: 300/500V, 450/750V, 0.6/1kV
Conductor: Cu or Al
Insulation: PVC or XLPE or LSZH
Sheath (optional): Nylon Jacket
Standards: IEC/EN/BS/UL/CSA
Certificatios: CB Test Certificate/CCC/ISO 9001/ISO 14001
*FR, FRLS, LSZH, LSOH, LSHF cables are also available.
*Our custom cable services are designed to meet your specific requirements.
Email: sales8@hihuanghecable.com
Send Email
Get Inquiry
STRUCTURE
MODEL
CHARACTERISTICS

STRUCTURE: PVC/XLPE Insulated Solid Core Wire Cable

  1. Solid Conductor Core: Features a single, solid rod of 99.9% Pure Annealed Copper for maximum electrical stability.
  2. High-Grade XLPE Insulation: Cross-linked Polyethylene provides superior heat resistance, allowing the core to run safely at 90°C .
  3. Standard PVC Option: Also available with high-quality PVC insulation for standard building applications (rated at 70°C ).
  4. Solid vs. Stranded: The solid core design is stiffer and more compact, making it ideal for permanent terminal connections.
  5. Triple Voltage Rating: Engineered to meet 300/500V , 450/750V , and heavy-duty 0.6/1kV requirements.
  6. Rugged Outer Sheath: Encased in a flame-retardant PVC jacket that protects against UV rays and mechanical impact.
  7. Environmental Shield: Highly resistant to moisture, acids, and alkalis, making it suitable for damp walls or conduits.
  8. Thermal Security: Capable of withstanding short-circuit temperatures up to 250°C without melting (XLPE version).
  9. Space Saving: The solid core offers a smaller outer diameter compared to stranded cables of the same capacity
    10.    Global Certification: Fully compliant with IEC 60502-1 and UL safety standards for international projects.

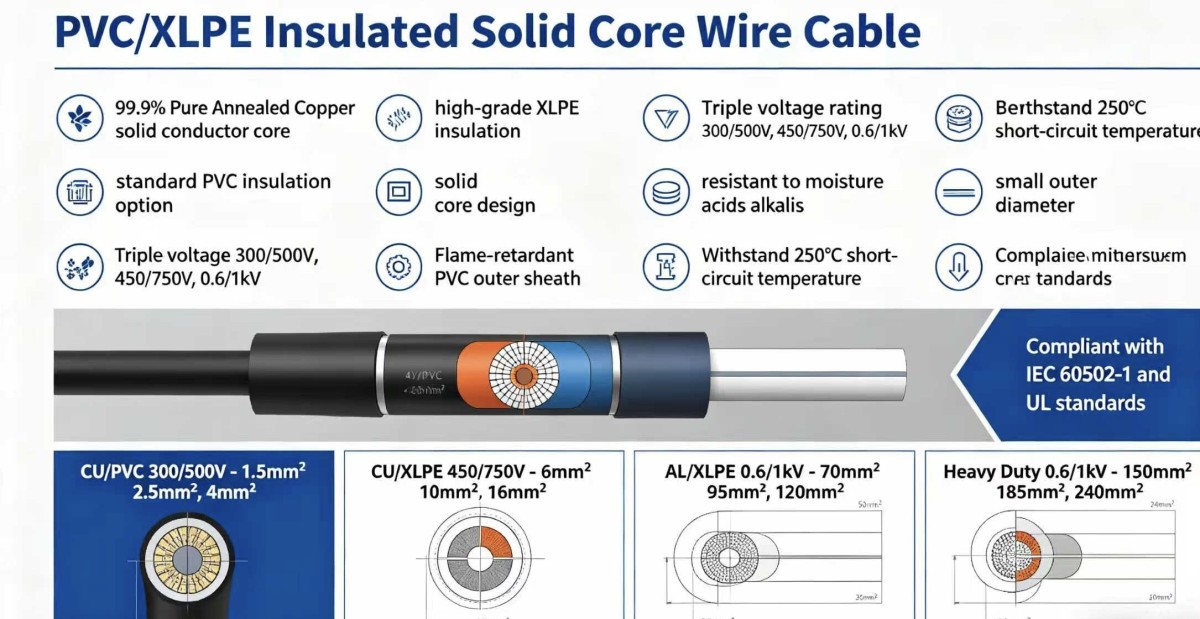

PVC/XLPE Insulated Solid Core Wire Cable

Voltage RatingTypeCore SectionDescriptionNominal Section Area (mm²)
300/500VCU/PVCSolid CoreControl & Signal: Thinner wires for light switches, alarms, and internal panel wiring.0.5, 0.75, 1, 1.5, 2.5
450/750VCU/XLPESolid CoreGeneral Power: Standard for residential outlets, fixed lighting, and kitchen appliances.4, 6, 10, 16
0.6/1kVAL/PVCSolid CoreMain Feeders: High-capacity wiring for sub-panels and large commercial circuits.25, 35, 50, 70, 95
0.6/1kVAL/XLPESolid CoreIndustrial Mains: Heavy-duty power supply for factory machines and central grids.120, 150, 185, 240
0.6/1kVHeavy DutySolid CoreInfrastructure: Maximum capacity for power plants and primary service entrances.300, 400




PVC Insulated Nylon Sheath THHN Wire Cable

STRUCTURE
This 10-line technical breakdown explains the high-performance build of these cables:
  1. High-Purity Conductor: Uses 99.9% soft-annealed copper for maximum conductivity and energy efficiency.
  2. Flexible Stranded Design: Features 19 or more copper strands to allow for easier bending and installation in conduits.
  3. Advanced PVC Insulation: A robust primary layer of flame-retardant Polyvinyl Chloride (PVC) that prevents electrical leakage.
  4. Tough Nylon Outer Jacket: A thin, clear polyamide "skin" that provides superior abrasion resistance and protection against mechanical damage.
  5. Easy-Pull Surface: The smooth, "slippery" nylon jacket reduces friction, allowing the wire to be pulled through pipes with 50% less effort.
  6. Dual/Triple Rating: Fully certified as THHN, THWN, and THWN-2 , allowing one wire to serve multiple environmental needs.
  7. 90°C Thermal Limit: Engineered to handle continuous high heat up to 90°C (194°F) in both wet and dry locations (for THWN-2).
  8. Chemical Resistance: The nylon shield is highly resistant to gasoline, oil, acids, and industrial solvents.
  9. Standard Voltage (600V): Fully rated for standard building services, with heavy-duty versions available for 0.6/1kV systems
    10. Global Safety Compliance: Manufactured to strictly follow UL 83 and IEC safety standards for guaranteed industrial reliability

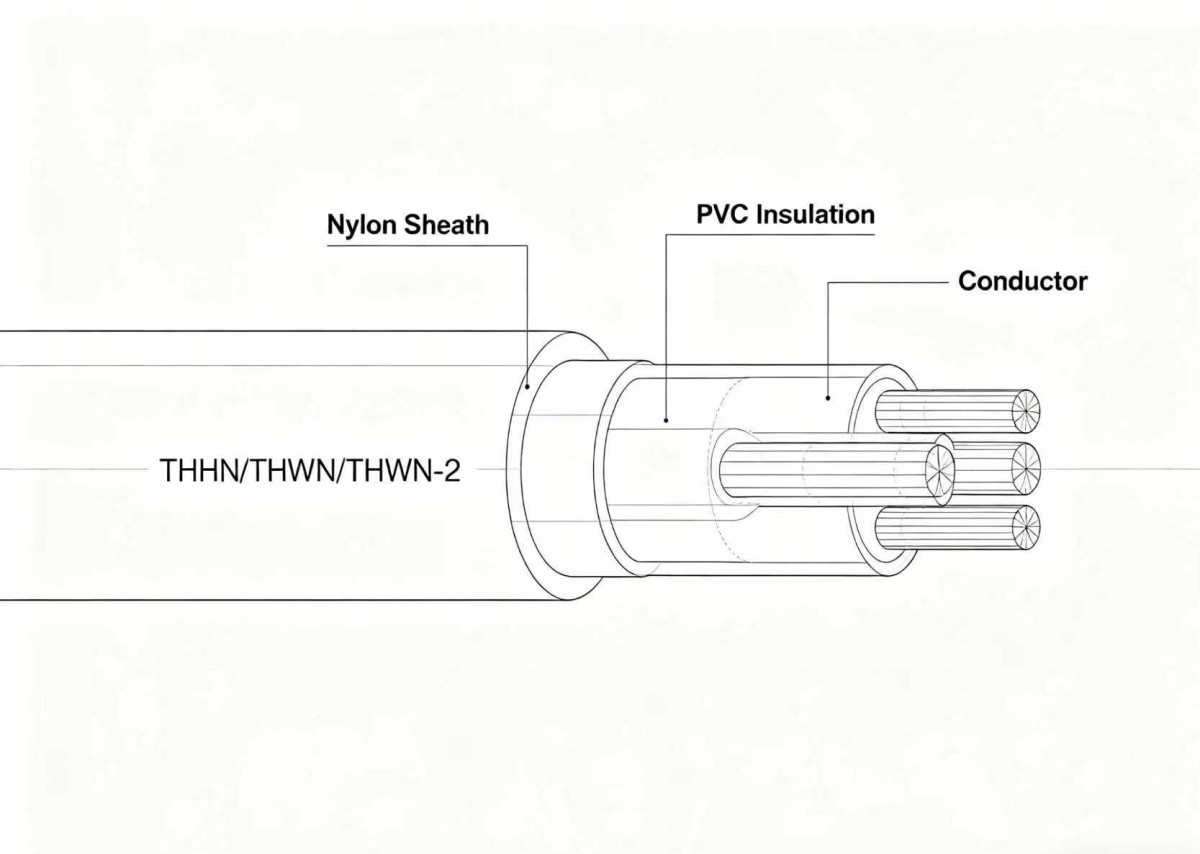

PVC Insulated Nylon Sheath THHN Wire Cable

THHN/THWN-2 Specialized Wire (Full AWG Range)
Core StructureSize Range (AWG/kcmil)Voltage RatingBest Client Use Case
Solid Core14, 12, 10 AWG300/500VSmall household lighting and outlets.
Stranded Core8, 6, 4, 3, 2, 1 AWG450/750VAC units and heavy kitchen appliances.
Stranded Core1/0, 2/0, 3/0, 4/0 AWG0.6/1kVMain electrical panel feeders for buildings.
Stranded Core250 to 500 kcmil0.6/1kVHeavy-duty industrial machinery power.
Stranded Core600 to 1500 kcmil0.6/1kVUtility grids and massive infrastructure.








"This Solid Core series offers a perfect balance of safety and performance. With its Triple Voltage Rating and ability to withstand extreme 250°C short-circuits , it is the most reliable choice for both high-end residential and heavy industrial infrastructure.

CLIENT SIZING & USE-CASE GUIDE
Model TypeVoltage RatingArea Range (mm²)Best Client Application
CU/PVC300/500V1.5, 2.5, 4 mm²Residential: Indoor lighting and standard wall outlets.
CU/XLPE450/750V6, 10, 16 mm²Appliances: AC units, water heaters, and sub-panels.
AL/XLPE0.6/1kV70, 95, 120 mm²Commercial: Main building feeders and distribution.
Heavy Duty0.6/1kV150, 185, 240 mm²Industrial: Factory machinery and power grids.

PVC Insulated Nylon Sheath THHN Wire Cable


"This cu/pvc/nylon cable is the professional choice for reliability. The Nylon Jacket makes it 'slippery' for easy pulling through pipes while providing a high-heat barrier that lasts decades longer than standard wire.
SUMMARY MODEL: THHN/THWN/THWN-2 Specialized Wire
STRUCTURE BREAKDOWN
This 10-line technical guide explains the premium build shown in your diagram:
  1. High-Purity Core: Uses 99.9% soft-annealed copper for maximum conductivity.
  2. Flexible Stranding: Multi-wire design allows for easier bending during installation.
  3. Advanced PVC Insulation: Flame-retardant layer that prevents electrical leakage.
  4. Tough Nylon Outer Jacket: Clear polyamide skin for superior abrasion resistance.
  5. Easy-Pull Surface: Slick nylon jacket reduces friction for 50% faster pipe installation.
  6. Triple Rating: Fully certified as THHN, THWN, and THWN-2 for wet or dry use.
  7. 90°C Thermal Limit: Engineered to handle high heat without melting or degrading.
  8. Chemical Shield: Highly resistant to gasoline, oil, and common industrial acids.
  9. Wide Voltage Range: Certified for 300/500V, 450/750V, and heavy-duty 0.6/1kV .
  10. Global Safety Standard: Follows strict UL 83 and IEC industrial safety certifications.
