XLPE Insulated Electric Cable

Cable Type:
Voltage: from 1kV to 35kV (LV & MV)
Conductor: Aluminum or Copper (solid, stranded, flexible core)
Insulation: XLPE (Crosslinked Polyethylene)
Outer Sheath: PVC or PE or LSZH
Standards: IEC/EN/BS/UL/CSA
Certifications: CB Test Certificate/CCC/ISO 9001/ISO 14001
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Our custom cable services are designed to meet your specific requirements.

Send Email

Get Inquiry

STRUCTURE

MODEL

CHARACTERISTICS

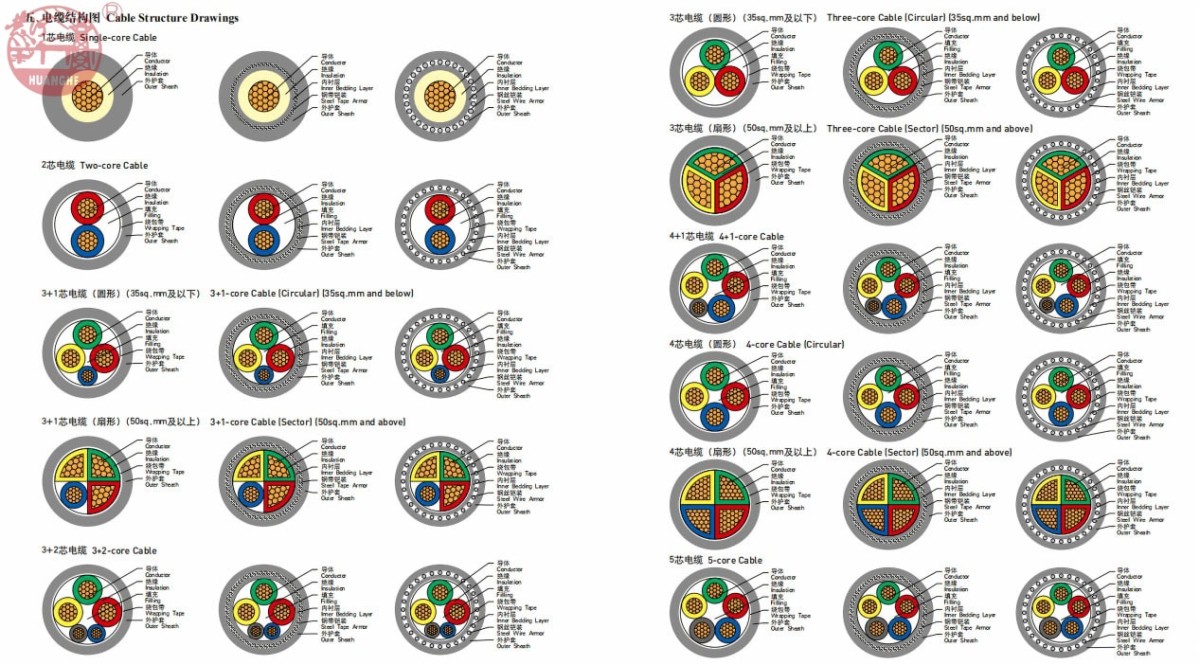

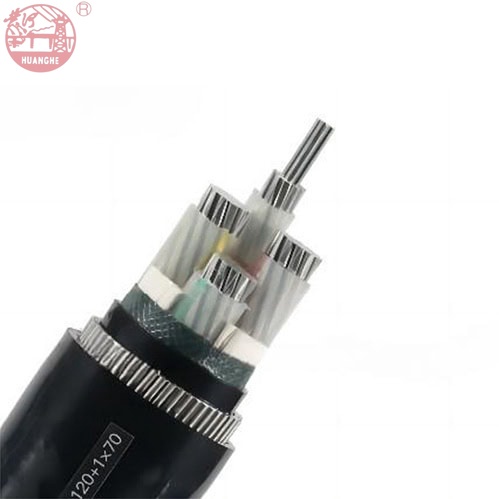

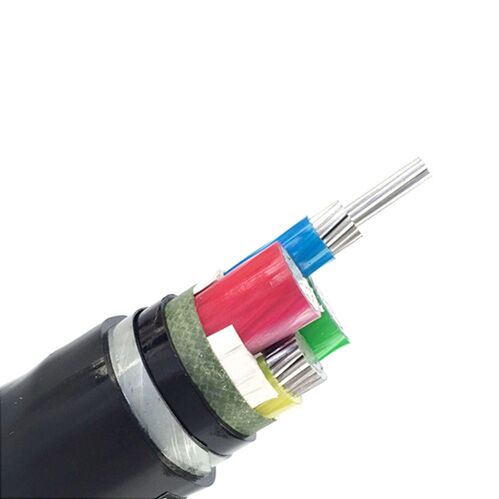

Low Voltage Power Cable STRUCTURE

Voltage:	1kV ~3kV
Conductor:	aluminum or (tinned) copper (solid core class1, stranded core class2, flexible core class5 )
Insulation:	Crosslinked Polyethylene (XLPE) PVC (optional)
Shield Layer (optional):	copper tape shielded (CTS) copper wire braided (CWB)
Armour Type (optional):	steel tape armoured (dsta) steel wire armoured (swa) aluminum wire armoured (awa)
Outer Sheath:	Polyvinyl Chloride (PVC) PE (Polyethylene) (optional) LSZH (optional)
Standards:	IEC/EN/BS/UL/CSA
Certifications:	CB Test Certificate/CCC/ISO 9001/ISO 14001
Additional:	FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available. Our custom cable services are designed to meet your specific requirements.

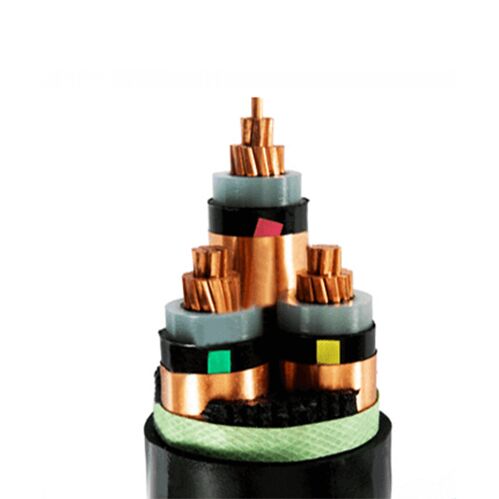

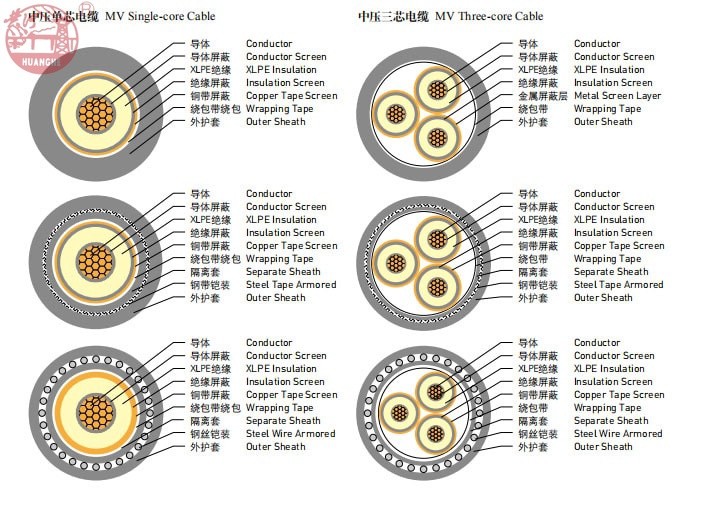

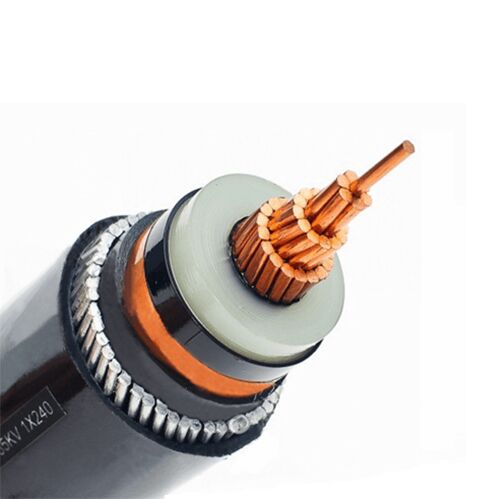

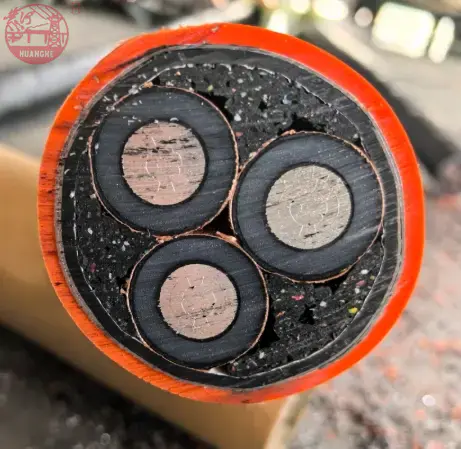

Medium Voltage XLPE Insulated Power Cable STRUCTURE

Voltage:	3.6kV ~35kV
Conductor:	Copper or Aluminum
Insulation:	Crosslinked Polyethylene (XLPE)
Shield Layer:	Copper Tape Shield (CTS) Copper Wire + Copper Tape Helically Shield(optional)
Armour Type (optional):	steel tape armoured (dsta) steel wire armoured (swa) aluminum wire armoured (awa)
Outer Sheath:	Polyvinyl chloride (PVC) PE (Polyethylene) (optional) LSZH (optional)
Standards:	IEC/EN/BS/UL/CSA
Certifications:	CB Test Certificate/CCC/ISO 9001/ISO 14001
Additional:	FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available. Our custom cable services are designed to meet your specific requirements
