PVC Insulated Electric Cable

cable type:
voltage: 0.6/1kV, 450/750V, 300/500V, 300/300V
Conductor: Aluminum or Copper (solid, stranded, flexible core)
Insulation: PVC (Polyvinyl Chloride)
Sheath: PVC or PE or LSZH
Standards: IEC/EN/BS/UL/CSA
Certifications: CB Test Certificate/CCC/ISO 9001/ISO 14001
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Our custom cable services are designed to meet your specific requirements.

Send Email

Get Inquiry

STRUCTURE

MODEL

CHARACTERISTICS

PVC Insulated House Wire Cable
Voltage	Type	Structure	Description	Cores	Cross Section Area
450/750V 0.6/1kV	BV	Cu/pvc	copper core, pvc insulated, wire cable (class 1 solid core, class 2 stranded core)	1 core	0.5~400mm²
	BVR	Cu/pvc	copper core, pvc insulated, flexible wire cable (class 5 flexible core)
	ZC-BV(R)	Cu/fr-pvc	copper core, fr-pvc insulated, flame retardant (flexible) wire cable
	NH-BV(R)	Cu/mica/pvc	copper core, mica tape, pvc insulated, fire rated (flexible) wire cable
Note: We provide custom cable manufacturing.

PVC Insulated PVC Sheathed Power Cable
Voltage	Type	Structure	Description	Cores	Cross Section Area
0.6/1kV	(ZC-)VV	(FR) Cu/pvc/pvc	copper core, pvc insulated, pvc sheathed (flame retardant) cable	1 core 2 cores 3 cores 4 cores 5 cores 3+1 cores 3+2 cores 4+1 cores	0.5~800mm²
	VVR	Cu/pvc/pvc	copper core, pvc insulated, pvc sheathed flexible cable
	VVRP	Cu/pvc/os/pvc	copper core, pvc insulated, copper wire braided shielded, pvc sheathed flexible cable
	VLV	Al/pvc/pvc	aluminum core, pvc insulated, pvc sheathed cable
	VV22	Cu/pvc/dsta/pvc	copper core, pvc insulated, double steel tape armoured, pvc sheathed cable		4~800mm²
	VLV22	Al/pvc/dsta/pvc	aluminum core, pvc insulated, double steel tape armoured, pvc sheathed cable
	VV32	Cu/pvc/swa/pvc	copper core, pvc insulated, steel wire armoured, pvc sheathed cable
	VLV32	Al/pvc/swa/pvc	aluminum core, pvc insulated, steel wire armoured, pvc sheathed cable
Note: Flame retardant cables, fire rated, low smoke halogen free cables are also available.

PVC Insulated PVC Sheathed Flexible Cable
Voltage	Type	Structure	Description	Cores	Cross Section Area
300/300V 300/500V 450/750V	RVVB	Cu/pvc/pvc	copper core, pvc insulated, pvc sheathed, flexible flat cable	2 cores 3 cores	0.5mm², 0.75mm², 1mm², 1.5mm², 2mm², 2.5mm²
	ZR-RVVB	Cu/fr-pvc/fr-pvc	copper core, flame retardant pvc insulated & sheathed, flexible flat cable	2 cores 3 cores	0.5mm², 0.75mm², 1mm², 1.5mm², 2mm², 2.5mm²
	RVV	Cu/pvc/pvc	copper core, pvc insulated, pvc sheathed, flexible cable	2 cores 3 cores 4 cores 5 cores 6 cores 7 cores 8 cores 10 cores 12 cores 18 cores 25 cores 36 cores	0.2~35mm²
	ZR-RVV	Cu/fr-pvc/fr-pvc	copper core, flame retardant pvc insulated & sheathed, flexible cable

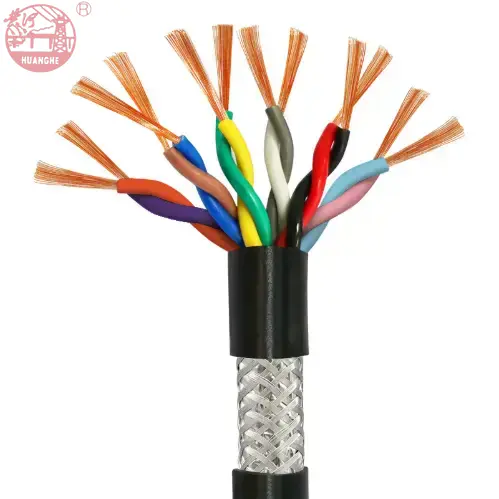

	RVVP	Cu/pvc/os/pvc	copper core, pvc insulated, shielded, pvc sheathed, flexible cable
	RVVSP	Cu/pvc/os/pvc	copper core, pvc insulated, paired twisted & shielded, pvc sheathed, flexible cable
Note: We provide custom cable manufacturing.
