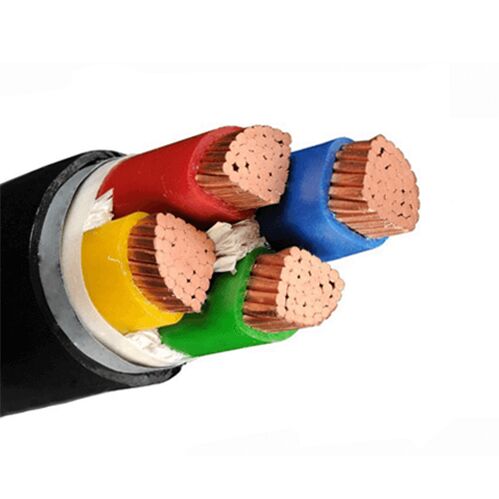

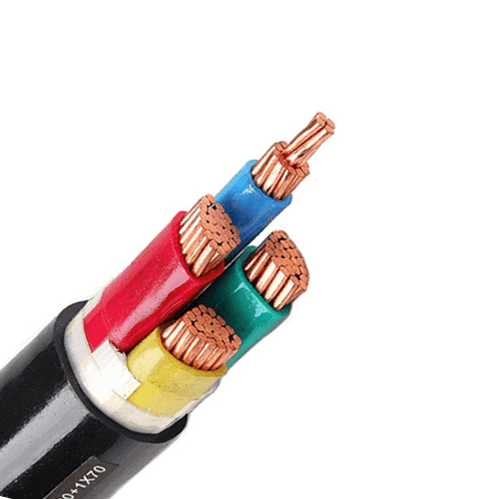

Copper Electric Cable
Copper Electric Cable
Voltage: from 1kV to 35kV (LV & MV)
Conductor: Copper Core
Insulation: Crosslinked Polyethylene (XLPE) or Polyvinyl chloride (PVC) or Polyethylene (PE)
Armour Type (optional): dsta, swa, awa
Outer Sheath: PVC or PE or LSZH
Standards: IEC/EN/BS/UL/CSA
Certifications: CB Test Certificate/CCC/ISO 9001/ISO 14001
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Our custom cable services are designed to meet your specific requirements.
Send Email
Get Inquiry
STRUCTURE
MODEL
CHARACTERISTICS

0.6/1kV~3kV Copper Core XLPE Insulated Cable

Copper Cable Type

Description

Cores

Cross Section Area

Cu/xlpe/pvc(pe)

YJV   YJY

copper core, xlpe insulated, pvc(pe) sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~800mm²

Cu/xlpe/pvc(pe)

YJVR   YJYR

copper core, xlpe insulated, pvc(pe) sheathed flexible cable


Cu/xlpe/dsta/pvc(pe)

YJV22   YJY22

copper core, xlpe insulated, steel tape armoured, pvc(pe) sheathed cable

4~800mm²

Cu/xlpe/swa/pvc(pe)

YJV32   YJY32

copper core, xlpe insulated, steel wire armoured, pvc(pe) sheathed cable

Note: Flame retardant cables and fire rated cables are also available.

0.6/1kV Copper Core PVC Insulated Cable

Copper Cable Models

Description

Cores

Cross Section Area

Cu/pvc/pvc

VV

copper core, pvc insulated, pvc sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~800mm²

Cu/pvc/dsta/pvc

VV22

copper core, pvc insulated, steel tape armoured, pvc sheathed cable

4~800mm²

Cu/pvc/swa/pvc

VV32

copper core, pvc insulated, steel wire armoured, pvc sheathed cable

Note: Flame retardant cable and fire resistant cable are also available.

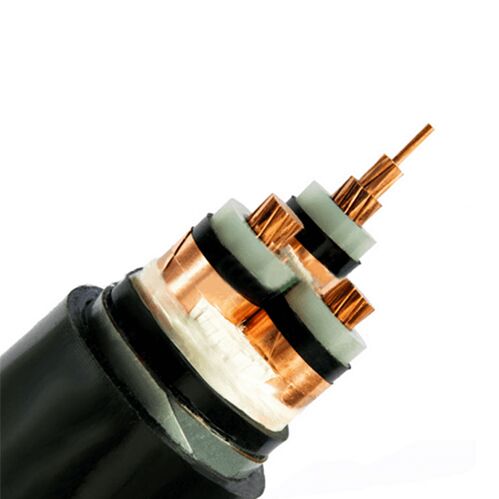

3.6kV~35kV Medium Voltage Copper Core XLPE Insulated Cable

Copper Cable Models

Description

Cores

Cross Section Area

Cu/xlpe/pvc(pe)

YJV   YJY

copper core, xlpe insulated, pvc(pe) sheathed cable

1 core

(sta, awa)

3 cores

(sta, swa, awa)

35~800mm²

Cu/xlpe/dsta/pvc(pe)

YJV22/YJV62

YJY22/YJY62

copper core, xlpe insulated, steel tape armoured (non-magnetic metallic tape), pvc(pe) sheathed cable

Cu/xlpe/swa/pvc(pe)

YJV32   YJY32

copper core, xlpe insulated, steel wire armoured, pvc(pe) sheathed cable

Cu/xlpe/awa/pvc(pe)

YJV72   YJY72

copper core, xlpe insulated, aluminum wire armoured, pvc(pe) sheathed cable

Note: Flame retardant cables and fire rated cables are also available.
