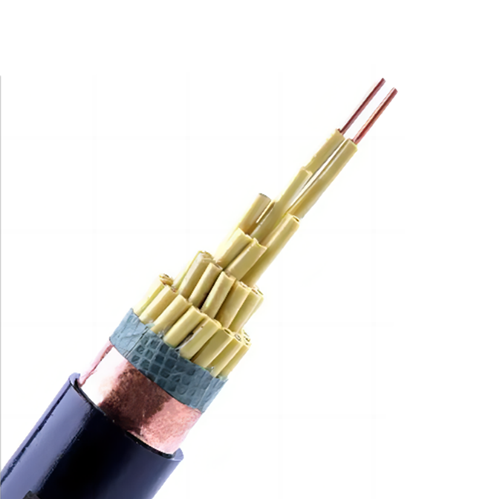

Conductor: Cu or Tinned Copper
Insulation: PVC or XLPE

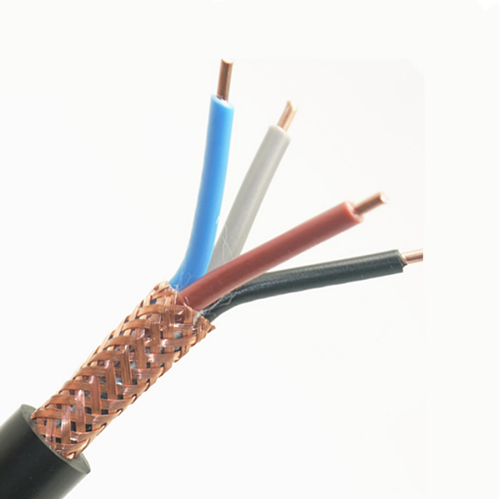

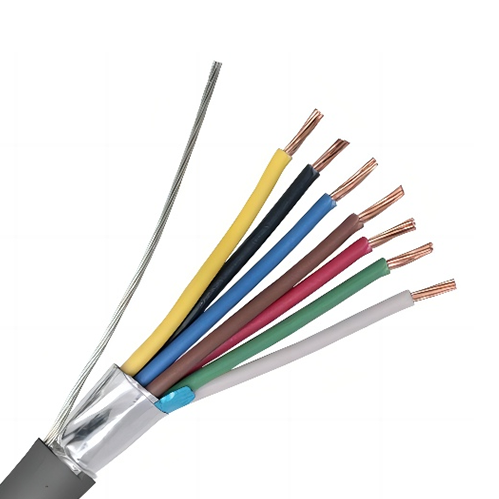

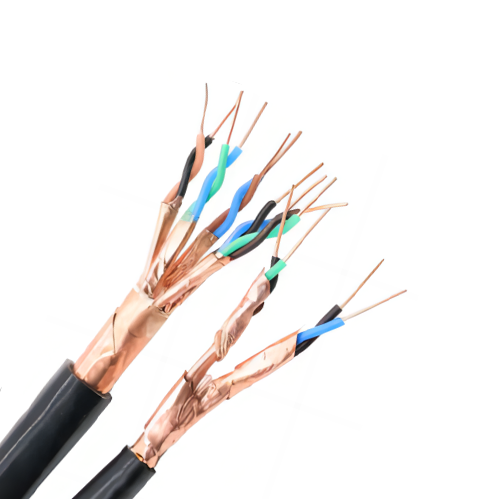

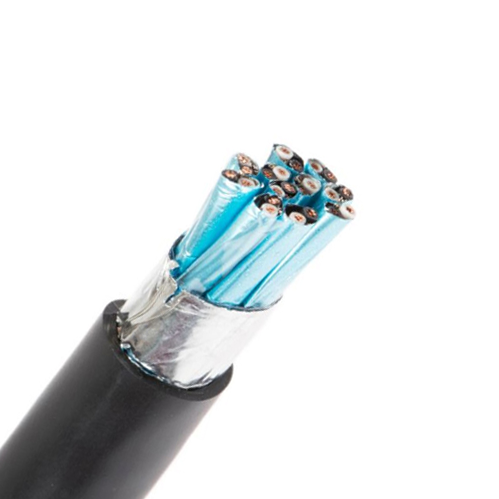

Shield Type: copper tape shield, copper wire braided shield (cws), aluminum foil shield
Armour Type (optional): stell tape armoured (sta), steei wire armoured (swa)
Sheath: PVC or PE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

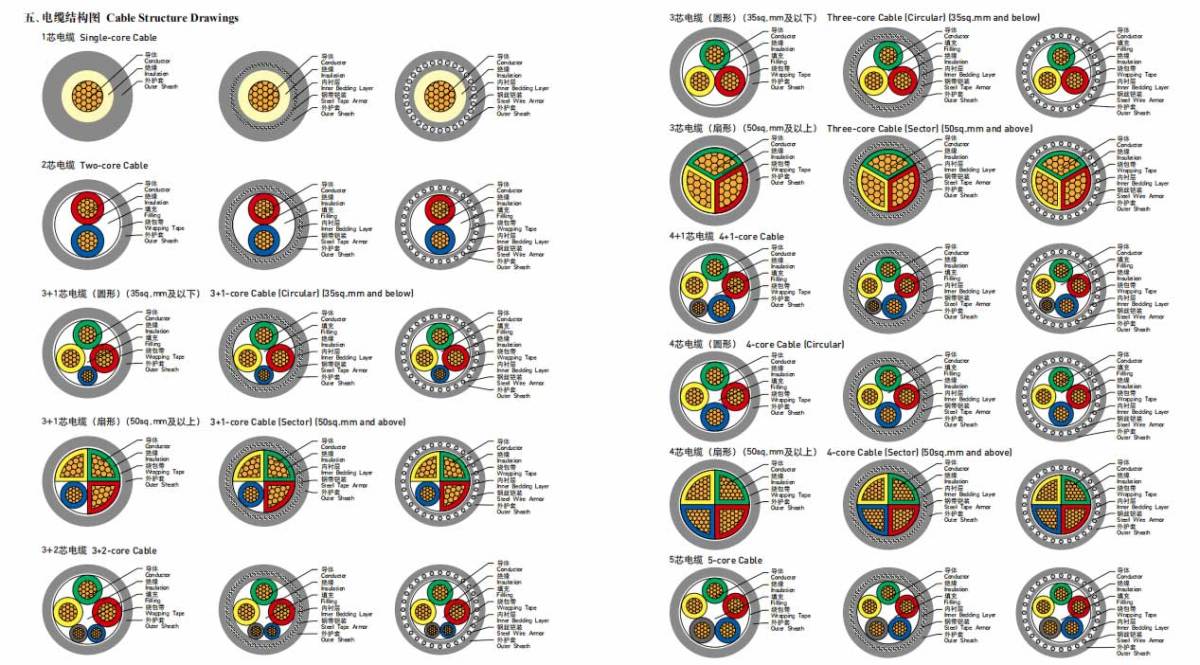

Low voltage cable STRUCTURE
Voltage: 1kV ~3kV
Conductor:
Copper or Aluminum or Tinned Copper
(Solid class1; stranded class2;Flexible class5 )
Insulation:
Crosslinked Polyethylene (XLPE)
PVC (optional)
Shield Layer (optional):
Copper tape(CTS)
Copper Wire Braided (CWB)
Armour Type (optional):
steel tape armoured (sta)
steel wire armoured (swa)
Aluminum wire armoured (awa)
Outer Sheath:
Polyvinyl chloride (PVC)
PE (Polyethylene) (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional:
*FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.
*Customized products are supported.
Medium voltage cable STRUCTURE
Voltage: 3.6kV ~35kV
Conductor: Copper or Aluminum
Insulation:
Crosslinked Polyethylene (XLPE)
PVC (optional)
Shield Layer:
Copper tape Shield(CTS)
Copper Wire + Copper Tape helically shield(optional)
Armour Type (optional):
steel tape armoured (sta)
steel wire armoured (swa)
Aluminum wire armoured (awa)
Outer Sheath:
Polyvinyl chloride (PVC)
PE (Polyethylene) (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.
*Customized products are supported.
XLPE Material
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
PVC Material
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
