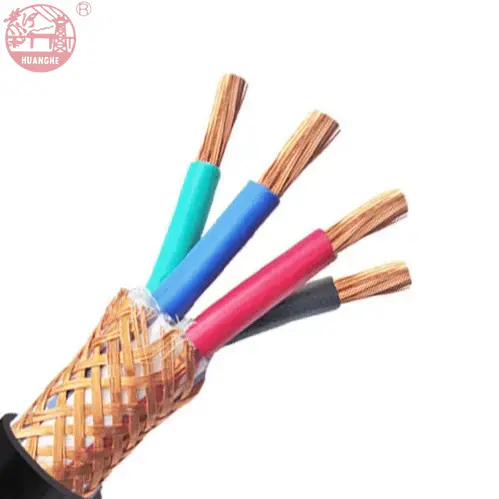

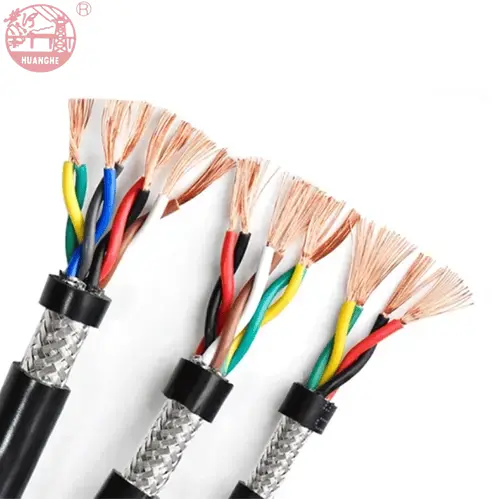

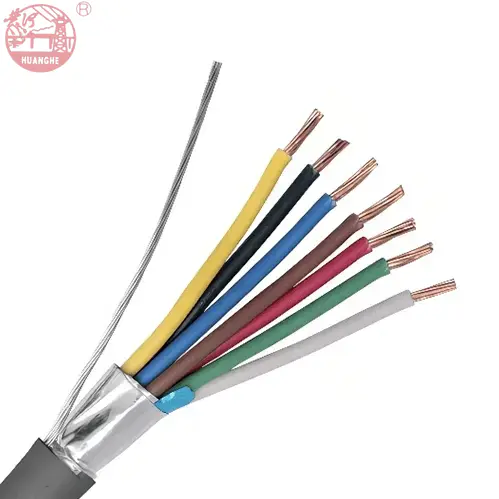

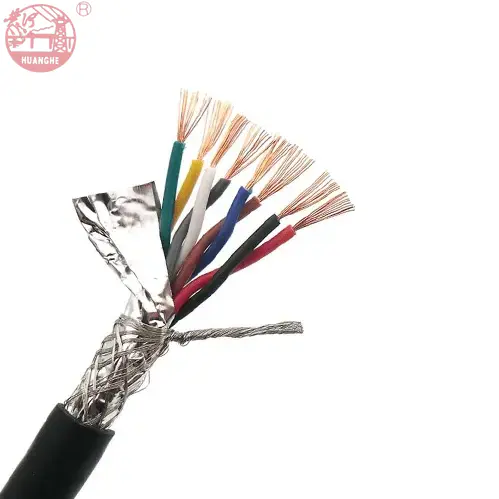

Flexible Control Cable

Cable Type:
Voltage: 450/750V, 0.6/1kV
Conductor: Annealed Cu or Tinned Cu (flexible core class5)
Insulation: PVC or XLPE
Shield Type (optional): copper tape shielded, copper wire braided shielded (cws), aluminum foil shielded
Armour Type (optional): steel tape armoured (sta), steel wire armoured (swa)
Sheath: PVC or PE or LSZH
Standards: IEC/EN/BS/UL/CSA
Certifications: CB Test Certificate/CCC/ISO 9001/ISO 14001
*FR, FRLS, LSZH, LSOH, LSHF control cables are also available.
*Our custom cable services are designed to meet your specific requirements.

Send Email

Get Inquiry

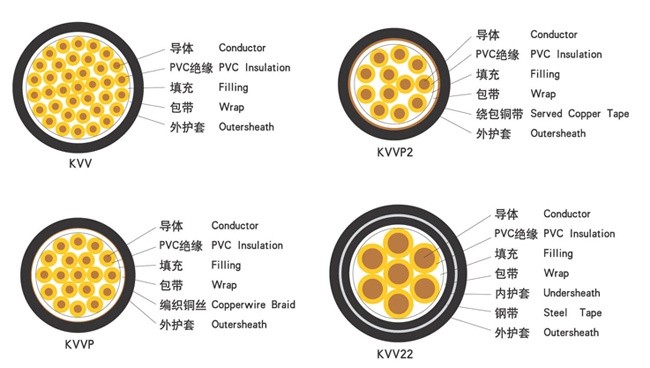

STRUCTURE

MODEL

CHARACTERISTICS

PVC Insulated Flexible Control Cable
Voltage	Type	Structure	Description	No. of Cores & Nominal Section Area
450v/750V 0.6/1kV	KVVR	cu/pvc/(is)os/pvc	copper core, pvc insulated, pvc sheathed, flexible control cable	2 core, 3 core, 4 core, 5 core, 7 core, 8 core, 10 core, 12 core, 14 core, 16 core, 19 core, 24 core, 27 core, 30 core, 37 core, 44 core, 52 core, 61 core, or as your request (0.2mm², 0.3mm², 0.5mm² , 0.75mm² , 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm²) 1 pair, 2 pairs, 3 pairs, 4 pairs, 5 pairs, 7 pairs, 8 pairs, 10 pairs, 12 pairs, 16 pairs, 19 pairs, 24 pairs, or as your request (0.2mm², 0.3mm², 0.5mm² , 0.75mm² , 1mm², 1.5mm², 2.5mm²)
	KVVRP	cu/pvc/(is)os/pvc	copper core, pvc insulated, (aluminum foil individual shielded), copper wire braided shielded, pvc sheathed, flexible control cable
	KVVRP2	cu/pvc/(is)os/pvc	copper core, pvc insulated, (aluminum foil individual shielded), copper tape shielded, pvc sheathed, flexible control cable
	KVVRP2-32	cu/pvc/(is)os/swa/pvc	copper core, pvc insulated, (aluminum foil individual shielded), copper tape shielded, steel wire armoured, pvc sheathed, flexible control cable
	KVVR22	cu/pvc/sta/pvc	copper core, pvc insulated, steel tape armoured, pvc sheathed, flexible control cable
	KVVR32	cu/pvc/swa/pvc	flexible copper core, pvc insulated, steel wire armoured, pvc sheathed, flexible control cable
Note: Flame retardant control cables and fire resistant control cables are also available.

XLPE Insulated Flexible Control Cable
Voltage	Type	Structure	Description	No. of Cores & Nominal Section Area
450v/750V 0.6/1kV	KYJVR	cu/pvc/(is)os/pvc	copper core, xlpe insulated, pvc sheathed, flexible control cable	2 core, 3 core, 4 core, 5 core, 7 core, 8 core, 10 core, 12 core, 14 core, 16 core, 19 core, 24 core, 27 core, 30 core, 37 core, 44 core, 52 core, 61 core, or as your request (0.2mm², 0.3mm², 0.5mm² , 0.75mm² , 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm²) 1 pair, 2 pairs, 3 pairs, 4 pairs, 5 pairs, 7 pairs, 8 pairs, 10 pairs, 12 pairs, 16 pairs, 19 pairs, 24 pairs, or as your request (0.2mm², 0.3mm², 0.5mm² , 0.75mm² , 1mm², 1.5mm², 2.5mm²)
	KYJVRP	cu/pvc/(is)os/pvc	copper core, xlpe insulated, (aluminum foil individual shielded), copper wire braided shielded, pvc sheathed, flexible control cable
	KYJVRP2	cu/pvc/(is)os/pvc	copper core, xlpe insulated, (aluminum foil individual shielded), copper tape shielded, pvc sheathed, flexible control cable
	KYJVRP2-32	cu/pvc/(is)os/swa/pvc	copper core, xlpe insulated, (aluminum foil individual shielded), copper tape shielded, steel wire armoured, pvc sheathed, flexible control cable
	KYJVR22	cu/pvc/sta/pvc	copper core, xlpe insulated, steel tape armoured, pvc sheathed, flexible control cable
	KYJVR32	cu/pvc/swa/pvc	copper core, xlpe insulated, steel wire armoured, pvc sheathed, flexible control cable
Note: Flame retardant control cables and fire resistant control cables are also available.

Chinese model	English Model/Description	Core Features	Common conductor cross-section（mm²）	Common number of cores	Typical specification examples
KVVR	Flexible PVC Insulated & Sheathed Control Cable	Copper core, PVC insulation, PVC sheath, soft copper conductor (stranded), unshielded, unarmored, most commonly used	0.5、0.75、1.0、1.5、2.5	2、3、4、5、7、8、10、12、14、16、19、24、37、61	KVVR 2×0.75、KVVR 7×1.5、KVVR 24×1.5
KVVRP	Shielded Flexible Control Cable			2、3、4、5、7、10、14、16、19、37	KVVRP 10×1.0、KVVRP 14×1.5、KVVRP 37×1.0
KVVR22	Armored Flexible Control Cable	On the basis of KVVR, steel strip armor is added, which combines soft core characteristics and mechanical protection, and is suitable for complex laying environments	0.75、1.0、1.5、2.5、4	4、5、7、10、14、19、24	KVVR22 5×1.0、KVVR22 14×1.5、KVVR22 24×2.5
ZR-KVVR/ZC-KVVR	Flame-Retardant Flexible Control Cable	Flame retardant KVVR, PVC insulation/sheath made of flame-retardant material, suitable for places with fire protection requirements	0.75、1.0、1.5、2.5	2、3、4、7、10、12、24、37	ZC-KVVR 3×1.0、ZR-KVVR 7×1.5、ZC-KVVR 37×1.0
NH-KVVR	Fire-Resistant Flexible Control Cable	Fire resistant KVVR, capable of maintaining power supply for a period of time during a fire, suitable for firefighting and emergency control circuits	1.0、1.5、2.5	2、3、4、5、7、10	NH-KVVR 4×1.5、NH-KVVR 7×1.0、NH-KVVR 10×2.5
KYJVR	High-Temperature Resistant Flexible Cable	Cross linked polyethylene (XLPE) insulation, PVC sheath, soft copper core, higher temperature resistance (≤ 90 ℃)	0.75、1.0、1.5、2.5、4	2、3、4、7、10、14、19、37	KYJVR 3×1.0、KYJVR 14×1.5、KYJVR 37×1.0
KYJVRP	Shielded High-Temp Flexible Cable	On the basis of KYJVR, copper wire braided shielding is added, which is heat-resistant and anti-interference, suitable for high-temperature signal control circuits	0.75、1.0、1.5、2.5	5、7、10、14、19、24	KYJVRP 10×1.0、KYJVRP 19×1.5、KYJVRP 24×1.5
RVV	General Flexible Power Control Cable	Universal soft sheathed cable, capable of both control and power transmission, with a simple structure and suitable for mild control scenarios	0.5、0.75、1.0、1.5、2.5	2、3、4、5	RVV 2×1.0、RVV 3×1.5、RVV 4×2.5

PS:1. All models are made of soft copper core (5 types of multi stranded conductors), suitable for control scenarios with frequent bending and movement; 2. The cross-section and number of cores can be customized according to the needs, and the commonly used specifications in the industry are listed in the table; 3. The shielding layer is woven with copper wire, and the armor layer is double steel strip armor.
