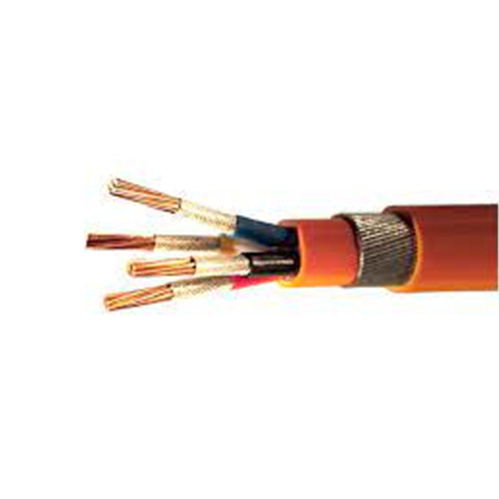

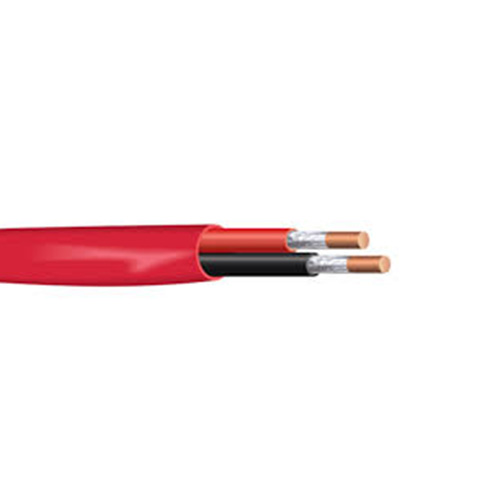

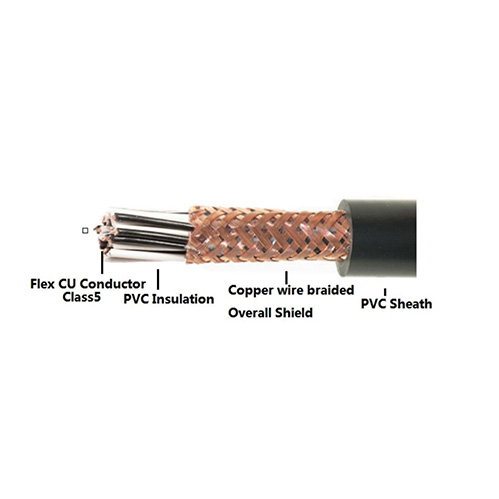

LV FIRE RATED ELECTRIC CABLE STRUCTURE

Voltage: 300/500V;450/750V;0.6/1KV;

Conductor:

Copper or Tinned Copper

(Solid class1; stranded class2;Flexible class5 IEC 60228 )

Fire rated(fire resistant):

Mica tape(MGT);

Insulation:

Crosslinked Polyethylene (XLPE)

PVC (optional)

Shield Layer(Optional-Individual/Overall shield):

Al foil shield(AL Foil);

Copper tape(CTS);

Copper Wire Braided (CWB);

Tinned copper wire braided(TCWB)

Drain wire(Optional):

Solid CU;

Stranded CU;

Flex Tinned CU;

Armour Type (optional):

Steel tape armoured (sta)

steel wire armoured (swa)

Aluminum wire armoured (awa)

Aluminum tape armoured(ata)

Outer Sheath:

Polyvinyl chloride (PVC)

PE (Polyethylene)  (optional)

LSZH Compound(optional)

Standards: CCC/UL/CE/CNAS/IEC Certificate

Additional:

*FR,FRLS,LSZH,LSOH,LSHF,anti-termite，water-proof cables and so on are available..

*Customized products are supported.
