Conductor: Steel Core Aluminum
Aluminum Alloy Core
Insulation: XLPE or PVC or PE
Standards:CCC/UL/CE/CNAS/IEC Certificate
*FR,FRLS,LSZH,LSOH,LSHF,anti-termite cables are also available.
*Customized products are supported

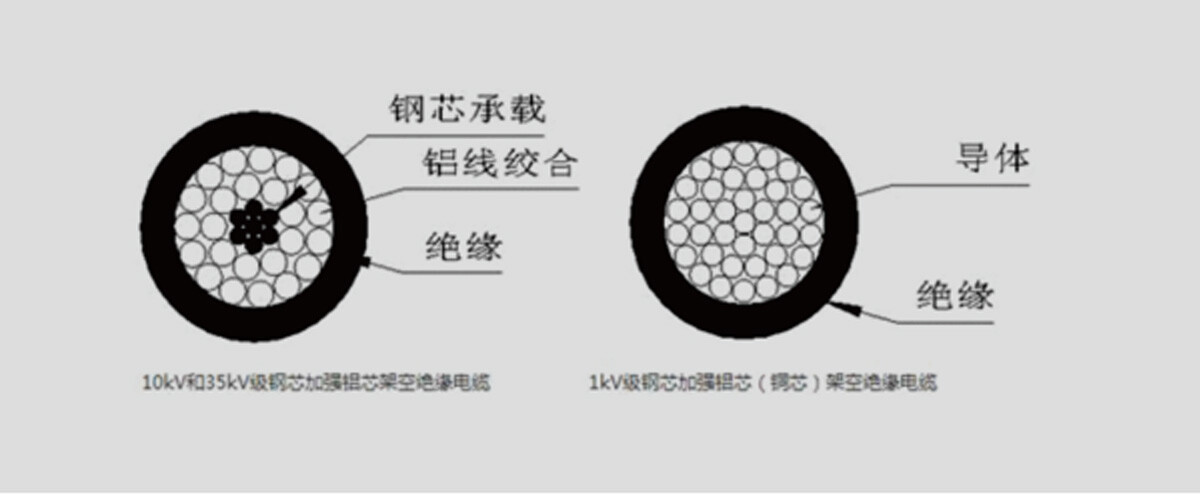

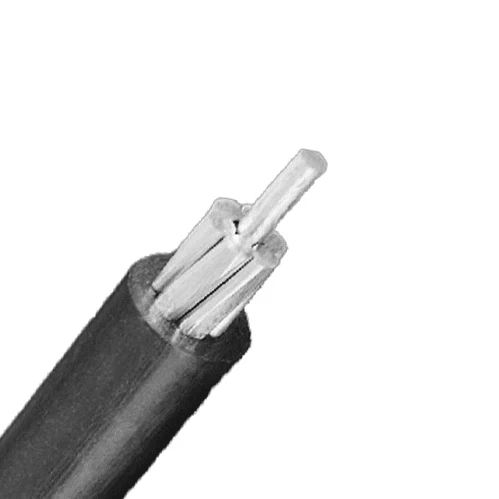

SINGLE CORE OVERHEAD CABLE
Voltage: 0.6/1KV 10KV
Conductor:
Aluminum Conductor Class2;
Aluminum Conductor Steel Reinforced Class2;(optional)
Aluminum Alloy Core (optional)
Insulation:
Crosslinked Polyethylene (XLPE)
PVC (optional)
PE (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional:
*Customized products are supported.
XLPE Material
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
PVC Material
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
Catalogue from Huanghe Cables - Jenny .pdf
High purity thick raw materials
99.99% Copper/99.6% Aluminum Safety, low resistance, stable voltage, more power saving
Low eccentricity, uniform thickness
Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.
Safer use, Flame Retardant and environment friendly
All new and high quality sheath，Wear-resistant and oil-resistant, soft and easy to install.
High cost-effectiveness
Environment friendly, safer use, better quality, low cost and sooner delivery.
International standards meet different needs.
Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.
Quick response within 24hours.
Huanghe Cable Group supports you always.
Product warranty for one year if the product is correctly installed and used.
Professional Team
Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
-
Q：What's the difference between the armored Types?
A: The most common armored models are generally SWA (steel wire armored) and STA(steel tape armored).
SWA Cables is suitable for high drop areas and can withstand mechanical external forces and considerable tension.
STA Cables is suitable for buried laying and can withstand mechanical external forces but cannot withstand large tensile forces.
Generally , SWA is preferred because it enables the cable to be drawn into an installation using apulling stockingwhich grips the outside of the oversheath and transfers all the pulling tension to the SWAThis cannot normally be done with STA cables because of the risk of dislocating the armour tapesduring the pull.
And Unarmored cables can be used if they are installed indoors or in a protected areasuch as a pipe, where they do not need to withstand a external forces/tensile.
